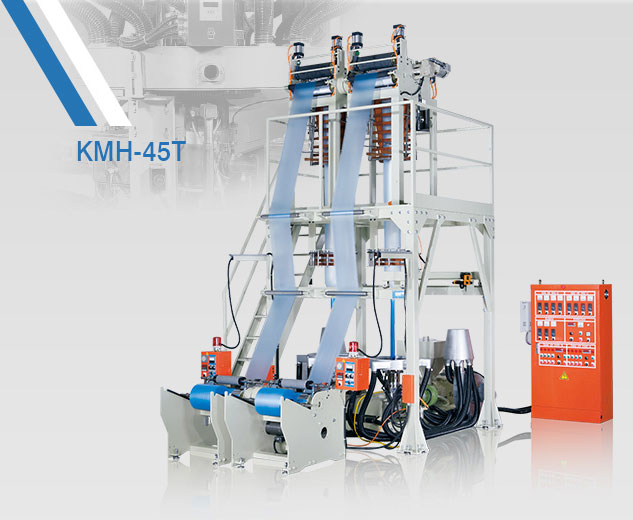

TWIN HEAD HDPE PLASTIC INFLATION MACHINE

  • Model:KMH-45T
DETAIL SPECIFICATIONS

MODEL KMH-45T
KMH-45T
SUITABLE MATERIAL HDPE
HDPE
FILM THICKNESS 0.008 ~ 0.06 mm
0.008 ~ 0.06 mm
FILM WIDTH RANGE 400 mm × 2
400 mm × 2
FILM OUTPUT 24 kgs/hr × 2
24 kgs/hr × 2
EXTRUDER UNIT
SCREW DIAMETER/TYPE Ø45 mm
Ø45 mm
SCREW L/D RATIO 28:1
28:1
HEATING CAPACITY 9.6 kw
9.6 kw
BARREL COOLING FAN 1/8 HP × 3
1/8 HP × 3
DRIVING MOTOR AC 20 HP + INVERTER
AC 20 HP + INVERTER
DIE UNIT (2 UNIT)
DIE DIAMETER Ø50 mm
Ø50 mm
AIR RING DIAMETER Ø100 mm
Ø100 mm
COOLING BLOWER 3 HP
3 HP
TAKE-UP UNIT (2 UNIT)
TAKE-UP ROLLER 500 mm
500 mm
EFFECTIVE WIDTH 400 mm
400 mm
TAKE-UP MOTOR AC 1/2 HP
AC 1/2 HP
TAKE-UP SPEED 85 m/min
85 m/min
WINDING UNIT (2 UNIT)
ROLLER WIDTH 500 mm
500 mm
WINDING WIDTH 400 mm
400 mm
WINDING MOTOR DC 1/2 HP × 2
DC 1/2 HP × 2
* Remark: The above machine specification and production range can be changed without any notice due to kind of different application.
