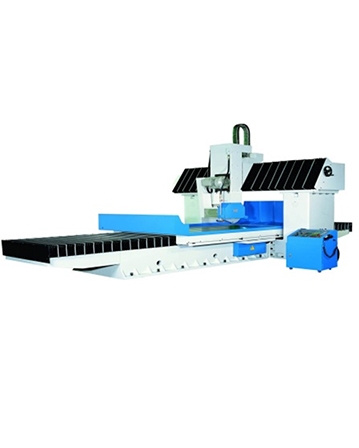

Fully Auto Surface Grinder(Double Column series)
- Model：*JL-120200ATD/JL-120300ATD/JL-120400ATD/ *JL-120500ATD/ JL-120600ATD/JL-160200ATD/ *JL-160300ATD/JL-
| Model | JL-160200ATD | JL-120200ATD | JL-120300ATD | JL-120400ATD | JL-120500ATD | JL-120600ATD | JL-160300ATD | JL-160400ATD | JL-160500ATD | JL-160600ATD |
|---|---|---|---|---|---|---|---|---|---|---|
| General Capaity | ||||||||||
| Table size(WxL)(mm) | 1600*2000 | 1200*2000 | 1200*3000 | 1200*4000 | 1200*5000 | 1200*6000 | 1600*3000 | 1600*4000 | 1600*5000 | 1600*6000 |
| Max. surface ground(mm) | 1600*2000 | 1200*2000 | 1200*3000 | 1200*4000 | 1200*5000 | 1200*6000 | 1600*3000 | 1600*4000 | 1600*5000 | 1600*6000 |
| Max. distance from center of Spindle to table(mm) | 1000[Option Height:1200] | 1000[Option Height:1200] | 1000[Option Height:1200] | 900[Option Height:1100] | 900[Option Height:1100] | 900[Option Height:1100] | 1000[Option Height:1200] | 900[Option Height:1100] | 900[Option Height:1100] | 900[Option Height:1100] |
| Max. tableload(kgs) (kgs) | 6000 | 5200 | 6340 | 7600 | 8700 | 9880 | 7300 | 9000 | 10700 | 12400 |
| LongitudinalMovement | ||||||||||
| Table speed(infinite elevation) | 1~25 | 1~25 | 1~25 | 1~25 | 1~25 | 1~25 | 1~25 | 1~25 | 1~25 | 1~25 |
| Gudieway | double V way | double V way | double V way | double V way | double V way | double V way | double V way | double V way | double V way | double V way |
| Cross Movement | ||||||||||
| Cross feed increment (approx.)(mm) | 0.1~40 | 0.1~40 | 0.1~40 | 0.1~40 | 0.1~40 | 0.1~40 | 0.1~40 | 0.1~40 | 0.1~40 | 0.1~40 |
| Cross rapid traverse rate(mm/min) | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 |
| Cross hand wheel increment (mm) | (X1) 0.1 (X1) 0.001 | (X1) 0.1 (X1) 0.001 | (X1) 0.1 (X1) 0.001 | (X1) 0.1 (X1) 0.001 | (X1) 0.1 (X1) 0.001 | (X1) 0.1 (X1) 0.001 | (X1) 0.1 (X1) 0.001 | (X1) 0.1 (X1) 0.001 | (X1) 0.1 (X1) 0.001 | (X1) 0.1 (X1) 0.001 |
| Vertical movement | ||||||||||
| Wheel seat rapid traverse (approx.) (optional) (mm/min) | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Vertical hand wheel (mm) | 0.001~0.999 | 0.001~0.999 | 0.001~0.999 | 0.001~0.999 | 0.001~0.999 | 0.001~0.999 | 0.001~0.999 | 0.001~0.999 | 0.001~0.999 | 0.001~0.999 |
| Auto down feed (optional)(mm) | (X1) 0.1 (X1) 0.001 | (X1) 0.1 (X1) 0.001 | (X1) 0.1 (X1) 0.001 | (X1) 0.1 (X1) 0.001 | (X1) 0.1 (X1) 0.001 | (X1) 0.1 (X1) 0.001 | (X1) 0.1 (X1) 0.001 | (X1) 0.1 (X1) 0.001 | (X1) 0.1 (X1) 0.001 | (X1) 0.1 (X1) 0.001 |
| Grinding Wheel | ||||||||||
| Grinding Wheel speed(R.P.M) | 1100 R.P.M | 1100 R.P.M | 1100 R.P.M | 1100 R.P.M | 1100 R.P.M | 1100 R.P.M | 1100 R.P.M | 1100 R.P.M | 1100 R.P.M | 1100 R.P.M |
| Dimension of the wheel | ||||||||||
| (ODxWxB) (mm) | 508X50X203 (Max.508X76X203) | 508X50X203 (Max.508X76X203) | 508X50X203 (Max.508X76X203) | 508X50X203 (Max.508X76X203) | 508X50X203 (Max.508X76X203) | 508X50X203 (Max.508X76X203) | 508X50X203 (Max.508X76X203) | 508X50X203 (Max.508X76X203) | 508X50X203 (Max.508X76X203) | 508X50X203 (Max.508X76X203) |
| Motor | ||||||||||
| Spindle motor(HP*P) | 20[30-Optional] | 20[30-Optional] | 20[30-Optional] | 20[30-Optional] | 20[30-Optional] | 20[30-Optional] | 20[30-Optional] | 20[30-Optional] | 20[30-Optional] | 20[30-Optional] |
| Hydraulic pump motor(HP) | 15 | 15 | 15 | 20 | 20 | 25 | 15 | 20 | 20 | 25 |
| Cross feed motor(HP) | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor |
| Vertical Rapid motor (optional)(HP) | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor |
| Water pump (optional)(HP) | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| Weight | ||||||||||
| Machine net weight/ Kgs(lbs) | 23000 | 20000 | 24000 | 28500 | 33000 | 37500 | 28000 | 33000 | 38000 | 43000 |
| Packing weight/ Kgs(1bs) | 25500 | 20000 | 26300 | 31000 | 36000 | 41500 | 30800 | 36000 | 41500 | 48000 |
| Size | ||||||||||
| Machine floor space | ||||||||||
| (LxWxH)(mm) | 660*410*400 | 660*370*400 | 880*370*400 | 1100*370*400 | 1320*370*400 | 1540*370*400 | 880*410*400 | 1100*410*400 | 1320*410*400 | 1540*410*400 |
| Packing size | ||||||||||
| (LxWxH)(mm) | 40' HQX1 | 40' HQX1 | 40' HQ X1+ 20' X1 | 40' HQ X1+ 20' X1 | 40' HQ X 2 | 40' HQ X1+ 40' FR X1 | 40' HQ X1+ 20' X1 | 40' HQ X1+ 20' X1 | 40' HQ X 2 | 40' HQ X1+ 40' FR X1 |
