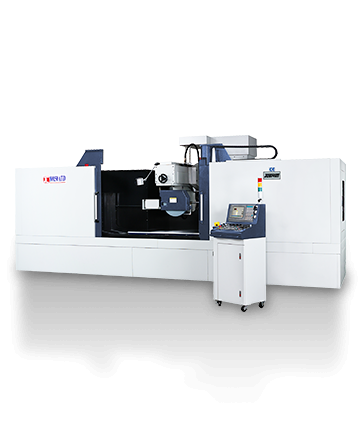

Fully Auto Surface Grinder(Cantilever series)
- Model：*JL-80150ATD/JL-80200ATD/JL-80300ATD/ *JL-80400ATD/JL-100150ATD/JL-100200ATD/ *JL-100300ATD/JL-10040
| Model | JL-100150AHD | JL-100200AHD | JL-100300AHD | JL-100400AHD | JL-8015ATD | JL-80200AHD | JL-80300AHD | JL-80400AHD |
|---|---|---|---|---|---|---|---|---|
| General Capaity | ||||||||
| Table size(WxL)(mm) | 1000*1500 | 1000*2000 | 1000*3000 | 1000*4000 | 800*1500 | 800*2000 | 800*3000 | 800*4000 |
| Max. surface ground(mm) | 1000*1500 | 1000*2000 | 1000*3000 | 1000*4000 | 800*1500 | 800*2000 | 800*3000 | 800*4000 |
| Max. distance from center of Spindle to table(mm) | 800 [optional height:1000] | 800 [optional height:1000] | 800 [optional height:1000] | 700 [optional height:900] | 800 [optional height:1000] | 800 [optional height:1000] | 800 [optional height:1000] | 700 [optional height:900] |
| Max. tableload(kgs) (kgs) | 2400 | 3200 | 4800 | 5500 | 2000 | 2650 | 3950 | 5000 |
| LongitudinalMovement | ||||||||
| Table speed(infinite elevation) | 3~25m/min(120"~1000"/min) | 3~25m/min(120"~1000"/min) | 3~25m/min(120"~1000"/min) | 3~25m/min(120"~1000"/min) | 3~25m/min(120"~1000"/min) | 3~25m/min(120"~1000"/min) | 3~25m/min(120"~1000"/min) | 3~25m/min(120"~1000"/min) |
| Gudieway | double V way | double V way | double V way | double V way | double V way | double V way | double V way | double V way |
| Cross Movement | ||||||||
| Cross feed increment (approx.)(mm) | 0.5~20 | 0.5~20 | 0.5~20 | 0.5~20 | 0.5~20 | 0.5~20 | 0.5~20 | 0.5~20 |
| Cross rapid traverse rate(mm/min) | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 |
| Cross hand wheel increment(mm) | ||||||||
| 1 revolution | 5mm(0.1") | 5mm(0.1") | 5mm(0.1") | 5mm(0.1") | 5mm(0.1") | 5mm(0.1") | 5mm(0.1") | 5mm(0.1") |
| 1 graduation | 0.02mm(0.0005") | 0.02mm(0.0005") | 0.02mm(0.0005") | 0.02mm(0.0005") | 0.02mm(0.0005") | 0.02mm(0.0005") | 0.02mm(0.0005") | 0.02mm(0.0005") |
| Vertical movement | ||||||||
| Wheel seat rapid traverse (approx.) (optional) (mm/min) | 240 | 240 | 240 | 240 | 240 | 240 | 240 | 240 |
| Vertical hand wheel (mm)(mm/min) | (X1)0.1 (X5)0.5 (X10)1 (X1)0.001 (X5)0.005 (X10& | (X1)0.1 (X5)0.5 (X10)1 (X1)0.001 (X5)0.005 (X10& | (X1)0.1 (X5)0.5 (X10)1 (X1)0.001 (X5)0.005 (X10& | (X1)0.1 (X5)0.5 (X10)1 (X1)0.001 (X5)0.005 (X10& | (X1)0.1 (X5)0.5 (X10)1 (X1)0.001 (X5)0.005 (X10& | (X1)0.1 (X5)0.5 (X10)1 (X1)0.001 (X5)0.005 (X10& | (X1)0.1 (X5)0.5 (X10)1 (X1)0.001 (X5)0.005 (X10& | (X1)0.1 (X5)0.5 (X10)1 (X1)0.001 (X5)0.005 (X10& |
| Auto down feed (optional)(mm) | 0.001~0.999 | 0.001~0.999 | 0.001~0.999 | 0.001~0.999 | 0.001~0.999 | 0.001~0.999 | 0.001~0.999 | 0.001~0.999 |
| Grinding Wheel | ||||||||
| Grinding Wheel speed(R.P.M) | ||||||||
| 60Hz(rpm) | 1750R.P.M | 1750R.P.M | 1750R.P.M | 1750R.P.M | 1750R.P.M | 1750R.P.M | 1750R.P.M | 1750R.P.M |
| 50Hz(rpm) | 1450 R.P.M | 1450 R.P.M | 1450 R.P.M | 1450 R.P.M | 1450 R.P.M | 1450 R.P.M | 1450 R.P.M | 1450 R.P.M |
| Dimension of the wheel | ||||||||
| (ODxWxB) (mm) | 405*50*127[ Max. 405*75*127] | - | 405*50*127[ Max. 405*75*127] | 405*50*127[ Max. 405*75*127] | 405*50*127[ Max. 405*75*127] | 405*50*127[ Max. 405*75*127] | 405*50*127[ Max. 405*75*127] | 405*50*127[ Max. 405*75*127] |
| Motor | ||||||||
| Spindle motor(HP*P) | 10[15-optional] | - | 10[15-optional] | 10[15-optional] | 10[15-optional] | 10[15-optional] | 10[15-optional] | 10[15-optional] |
| Hydraulic pump motor(HP) | 7.5 | 7.5 | 10 | 10 | 10 | 1 | 15 | 15 |
| Cross feed motor(HP) | 1/5 | 1/5 | 1/5 | 1/5 | 1/5 | 1/5 | 1/5 | 1/5 |
| Vertical Rapid motor (optional)(HP) | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor | 1KW AC Servo motor |
| Water pump (optional)(HP) | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| Weight | ||||||||
| Machine net weight/ Kgs(lbs) | 13800 | 15300 | 18800 | 21300 | 12800 | 14300 | 17300 | 20800 |
| Packing weight/ Kgs(1bs) | 14800 | 16500 | 19800 | 22800 | 13800 | 15500 | 17800 | 21800 |
| Size | ||||||||
| Machine floor space | ||||||||
| (LxWxH)(mm) | 5160*2660*2555 | 6260*2600*2555 | 8400*2660*2555 | 10660*2660*2555 | 5160*2400*2555 | 6260*2400*2555 | 8460*2400*2555 | 10660*2400*2555 |
| Packing size | ||||||||
| (LxWxH)(mm) | 439*276*297 | 546*276*297 | 750*276*297 | 850*276*597 | 439*230*297 | 546*230*297 | 750*230*297 | 850*230*597 |
