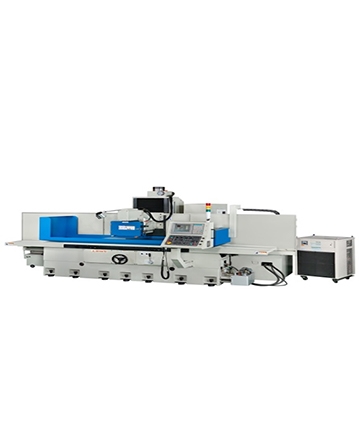

Fully Auto Surface Grinder(High Precision Saddle series)
- Model：*JL-2550ATDII/JL-63ATD/JL-84ATD
| Model | JL-5010ATD II | JL-6010ATDII | JL-7010ATDII | JL-5015ATDII | JL-6015ATDII | JL-7015ATDII | JL-5020ATDII | JL-6020ATDII | JL-7020ATDII | JL-5030ATDII | JL-6030ATDII | JL-7030ATDII | JL-5040ATDII | JL-6040ATDII | JL-7040ATDII |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| General Capaity | |||||||||||||||
| Table size (WxL)(mm) | 500x1000 | 600x1000 | 700x1000 | 500x1500 | 600x1500 | 700x1500 | 500x2000 | 600x2000 | 700x2000 | 500x3000 | 600x3000 | 700x3000 | 500x4000 | 600x4000 | 700x4000 |
| Max. Stroke (WxL)(mm) | 500x1100 | 600x1100 | 700x1100 | 500x1600 | 600x1600 | 700x1600 | 500x2100 | 600x2100 | 700x2100 | 500x3100 | 600x3100 | 700x3100 | 500x4100 | 600x4100 | 700x4100 |
| Surface of Magnetic (WxL) (mm) | 500x1000 | 600x1000 | 700x1000 | 500x1500 | 600x1500 | 700x1500 | 500x2000 | 600x2000 | 700x2000 | 500x3000 | 600x3000 | 700x3000 | 500x4000 | 600x4000 | 700x4000 |
| Max. distance from center of Spindle to table(mm) | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Max. tableload (electro magnetic chuck is included)(Kgs) | 1100 | 1500 | 1900 | 1500 | 1800 | 2100 | 1800 | 2000 | 2200 | 2200 | 2400 | 2600 | 2600 | 2800 | 3000 |
| T slots (diameter*number)(mm*N)(*mm) | 14*3 | 14*3 | 14*3 | 14*3 | 14*3 | 14*3 | 14*3 | 14*3 | 14*3 | 14*3 | 14*3 | 14*3 | 14*3 | 14*3 | 14*3 |
| Longitudinal Movement | |||||||||||||||
| Stroke(mm) | 1300 | 1300 | 1300 | 1800 | 1800 | 1800 | 2300 | 2300 | 2300 | 3300 | 3300 | 3300 | 3800 | 3800 | 3800 |
| Hydraulic pump motor | 3 | 5 | 5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Servo motor | X | X | 5 | 5 | 10 | X | X | 5 | 5 | 10 | X | X | 5 | 5 | 10 |
| Table speed(infinite elevation) | hydraulic 1~25/screw0~25 | hydraulic 1~25/screw0~25 | hydraulic 1~25/screw0~25 | hydraulic 1~25/screw0~25 | hydraulic 1~25/screw0~25 | hydraulic 1~25/screw0~25 | hydraulic 1~25/screw0~25 | hydraulic 1~25/screw0~25 | hydraulic 1~25/screw0~25 | hydraulic 1~25/screw0~25 | hydraulic 1~25/screw0~25 | hydraulic 1~25/screw0~25 | hydraulic 1~25/screw0~25 | hydraulic 1~25/screw0~25 | hydraulic 1~25/screw0~25 |
| Cross Movement | |||||||||||||||
| Stroke(mm) | 580 | 580 | 680 | 580 | 580 | 680 | 680 | 680 | 680 | 780 | 780 | 780 | 780 | 780 | |
| motor Sensor(Kw*P)Servo(Kw) | 0.75*61 | 0.75*61 | 0.75*61 | 0.75*61 | 0.75*61 | 0.75*61 | 0.75*61 | 0.75*61 | 0.75*61 | 0.75*61 | 0.75*61 | 0.75*61 | 0.75*61 | 0.75*61 | 0.75*61 |
| 移動速度(mm/min) | |||||||||||||||
| 60 Hz | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| 50 Hz | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 |
| Servo | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | |
| 1 revolution | 50.001/0.01/0.1 | 50.001/0.01/0.1 | 50.001/0.01/0.1 | 50.001/0.01/0.1 | 50.001/0.01/0.1 | 50.001/0.01/0.1 | 50.001/0.01/0.1 | 50.001/0.01/0.1 | 50.001/0.01/0.1 | 50.001/0.01/0.1 | 50.001/0.01/0.1 | 50.001/0.01/0.1 | 50.001/0.01/0.1 | 50.001/0.01/0.1 | 50.001/0.01/0.1 |
| 1 graduation | 0.0020.0001/0.001/0.01 | 0.0020.0001/0.001/0.01 | 0.0020.0001/0.001/0.01 | 0.0020.0001/0.001/0.01 | 0.0020.0001/0.001/0.01 | 0.0020.0001/0.001/0.01 | 0.0020.0001/0.001/0.01 | 0.0020.0001/0.001/0.01 | 0.0020.0001/0.001/0.01 | 0.0020.0001/0.001/0.01 | 0.0020.0001/0.001/0.01 | 0.0020.0001/0.001/0.01 | 0.0020.0001/0.001/0.01 | 0.0020.0001/0.001/0.01 | 0.0020.0001/0.001/0.01 |
| WheelheadVertical Infeed | |||||||||||||||
| Stroke(mm) | 470 | 470 | 470 | 470 | 470 | 470 | 470 | 470 | 470 | 470 | 470 | 470 | 470 | 470 | 470 |
| Servo motor | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Rapid power head elevation(mm/min) | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 |
| 1 revolution | 0.001/0.01/0.1 | 0.001/0.01/0.1 | 0.001/0.01/0.1 | 0.001/0.01/0.1 | 0.001/0.01/0.1 | 0.001/0.01/0.1 | 0.001/0.01/0.1 | 0.001/0.01/0.1 | 0.001/0.01/0.1 | 0.001/0.01/0.1 | 0.001/0.01/0.1 | 0.001/0.01/0.1 | 0.001/0.01/0.1 | 0.001/0.01/0.1 | 0.001/0.01/0.1 |
| 1 graduation | 0.0001/0.001/0.01 | 0.0001/0.001/0.01 | 0.0001/0.001/0.01 | 0.0001/0.001/0.01 | 0.0001/0.001/0.01 | 0.0001/0.001/0.01 | 0.0001/0.001/0.01 | 0.0001/0.001/0.01 | 0.0001/0.001/0.01 | 0.0001/0.001/0.01 | 0.0001/0.001/0.01 | 0.0001/0.001/0.01 | 0.0001/0.001/0.01 | 0.0001/0.001/0.01 | 0.0001/0.001/0.01 |
| Spindle | |||||||||||||||
| Motor | 10*4 (optional 15*4、15*6、20*6、25*6、 servo20Kw) | 10*4 (optional 15*4、15*6、20*6、25*6、 servo20Kw) | 10*4 (optional 15*4、15*6、20*6、25*6、 servo20Kw) | 10*4 (optional 15*4、15*6、20*6、25*6、 servo20Kw) | 10*4 (optional 15*4、15*6、20*6、25*6、 servo20Kw) | 10*4 (optional 15*4、15*6、20*6、25*6、 servo20Kw) | 10*4 (optional 15*4、15*6、20*6、25*6、 servo20Kw) | 10*4 (optional 15*4、15*6、20*6、25*6、 servo20Kw) | 10*4 (optional 15*4、15*6、20*6、25*6、 servo20Kw) | 10*4 (optional 15*4、15*6、20*6、25*6、 servo20Kw) | 10*4 (optional 15*4、15*6、20*6、25*6、 servo20Kw) | 10*4 (optional 15*4、15*6、20*6、25*6、 servo20Kw) | 10*4 (optional 15*4、15*6、20*6、25*6、 servo20Kw) | 10*4 (optional 15*4、15*6、20*6、25*6、 servo20Kw) | 10*4 (optional 15*4、15*6、20*6、25*6、 servo20Kw) |
| speed | |||||||||||||||
| 60Hz | 1740/1450(4P) | 1740/1450(4P) | 1740/1450(4P) | 1740/1450(4P) | 1740/1450(4P) | 1740/1450(4P) | 1740/1450(4P) | 1740/1450(4P) | 1740/1450(4P) | 1740/1450(4P) | 1740/1450(4P) | 1740/1450(4P) | 1740/1450(4P) | 1740/1450(4P) | |
| 50Hz | 1740/1450 (4P)/ linear velocity<2000M/min | 1740/1450 (4P)/ linear velocity<2000M/min | 1740/1450 (4P)/ linear velocity<2000M/min | 1740/1450 (4P)/ linear velocity<2000M/min | 1740/1450 (4P)/ linear velocity<2000M/min | 1740/1450 (4P)/ linear velocity<2000M/min | 1740/1450 (4P)/ linear velocity<2000M/min | 1740/1450 (4P)/ linear velocity<2000M/min | 1740/1450 (4P)/ linear velocity<2000M/min | 1740/1450 (4P)/ linear velocity<2000M/min | 1740/1450 (4P)/ linear velocity<2000M/min | 1740/1450 (4P)/ linear velocity<2000M/min | 1740/1450 (4P)/ linear velocity<2000M/min | 1740/1450 (4P)/ linear velocity<2000M/min | 1740/1450 (4P)/ linear velocity<2000M/min |
| Dimension of the wheel (ODxWxB) (mm) | 405*50*127 (optional 505*50*203.2) | 405*50*127 (optional 505*50*203.2) | 405*50*127 (optional 505*50*203.2) | 405*50*127 (optional 505*50*203.2) | 405*50*127 (optional 505*50*203.2) | 405*50*127 (optional 505*50*203.2) | 405*50*127 (optional 505*50*203.2) | 405*50*127 (optional 505*50*203.2) | 405*50*127 (optional 505*50*203.2) | 405*50*127 (optional 505*50*203.2) | 405*50*127 (optional 505*50*203.2) | 405*50*127 (optional 505*50*203.2) | 405*50*127 (optional 505*50*203.2) | 405*50*127 (optional 505*50*203.2) | 405*50*127 (optional 505*50*203.2) |
| Sound pressure level | |||||||||||||||
| Sound pressure level dB(A) | Below 78dB(A) | Below 78dB(A) | Below 78dB(A) | Below 78dB(A) | Below 78dB(A) | Below 78dB(A) | Below 78dB(A) | Below 78dB(A) | Below 78dB(A) | Below 78dB(A) | Below 78dB(A) | Below 78dB(A) | Below 78dB(A) | Below 78dB(A) | Below 78dB(A) |
| Weight | |||||||||||||||
| Machine net weight/ Kgs | 10000 | 11250 | 12500 | 16000 | 19500 | 10000 | 11250 | 12500 | 16000 | 19500 | 10800 | 12050 | 13300 | 16800 | 20300 |
| Packing weight/ Kgs(1bs) | 10700 | 12000 | 13300 | 16900 | 20500 | 10700 | 12000 | 13300 | 16900 | 20500 | 11500 | 12800 | 14100 | 17700 | 21300 |
| Size | |||||||||||||||
| Machine dimension | |||||||||||||||
| (LxWxH)(mm) | 3970*3300*2400 | 5080*3300*2400 | 6190*3300*2400 | 8500*3300*2400 | 10720*3300*2400 | 3970*3300*2400 | 5080*3300*2400 | 6190*3300*2400 | 8500*3300*2400 | 10720*3300*2400 | 3970*3300*2400 | 5080*3300*2400 | 6190*3300*2400 | 8500*3300*2400 | 10720*3300*2400 |
| Machine floor space | |||||||||||||||
| (LxWxH)(mm) | 3970*3300*2400 | 5080*3300*2400 | 6190*3300*2400 | 8500*3300*2400 | 10720*3300*2400 | 3970*3300*2400 | 5080*3300*2400 | 6190*3300*2400 | 8500*3300*2400 | 10720*3300*2400 | 3970*3300*2400 | 5080*3300*2400 | 6190*3300*2400 | 8500*3300*2400 | 10720*3300*2400 |
| Packing size | |||||||||||||||
| (L×W×H)/cm | 4170*2300*2550 | 5280*2300*2550 | 6390*2300*2550 | 8700*2300*2550 | 10920*2300*2550 | 4170*2300*2550 | 5280*2300*2550 | 6390*2300*2550 | 8700*2300*2550 | 10920*2300*2550 | 4170*2300*2550 | 5280*2300*2550 | 6390*2300*2550 | 8700*2300*2550 | 10920*2300*2550 |
