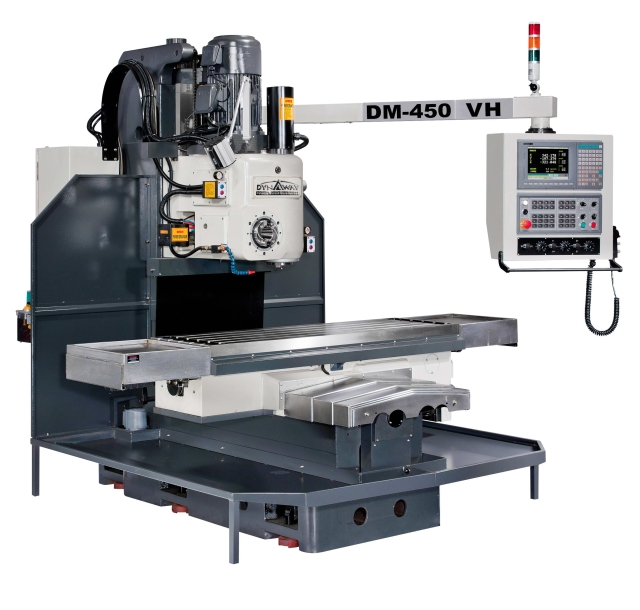

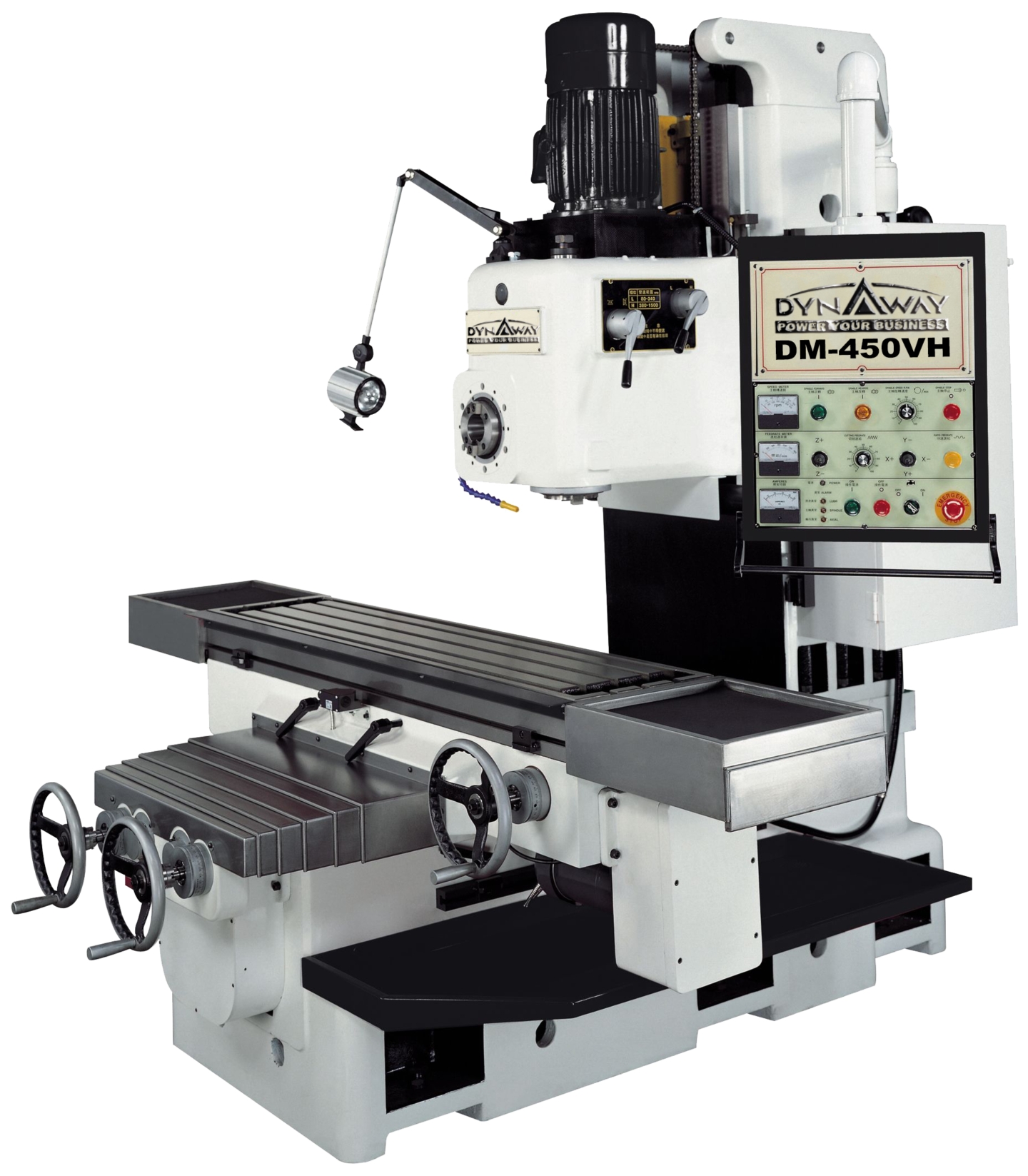

Bed Type Vertical Horizontal Milling Machine

Bed Type Vertical Horizontal Milling Machine

  • Model:DM-450VH
  • Color:Customized Color Available
  • Minimum Order:1 SET
  • Delivery Lead Time:30~45 DAYS
  • Delivery FOB Port:Taichung Port
  • Payment Condition:US DOLLARS

Detail Specifications

Model: DM-450VH
SPINDLE TAPER---NT#50
SPINDLE SPEEDS---45~1500RPM(Variable/18-STEP CHANGE)
SPINDLE MOTOR---10HP x 4P AC
TABLE SIZE---17.7” x 59”(450 x 1500mm)
X/Y/Z AXIS TRAVEL---1100/720/780mm
MAX. LOADING WEIGHT---1000kg
AUTO LUBRICATION SYSTEM
SPINDLE LUBRICATION SYSTEM
ELECTRIC CONTROL BOX
BALL SCREWS ON X, Y, Z AXIS
PRACTICAL TELESCOPIC COVER
AIR DRAW BAR
HALOGEN WORK LIGHT
HORIZONTAL MILLING HEAD
TOOLS & TOOL BOX
OPERATION MANUAL
NET WEIGHT: 4200kg
