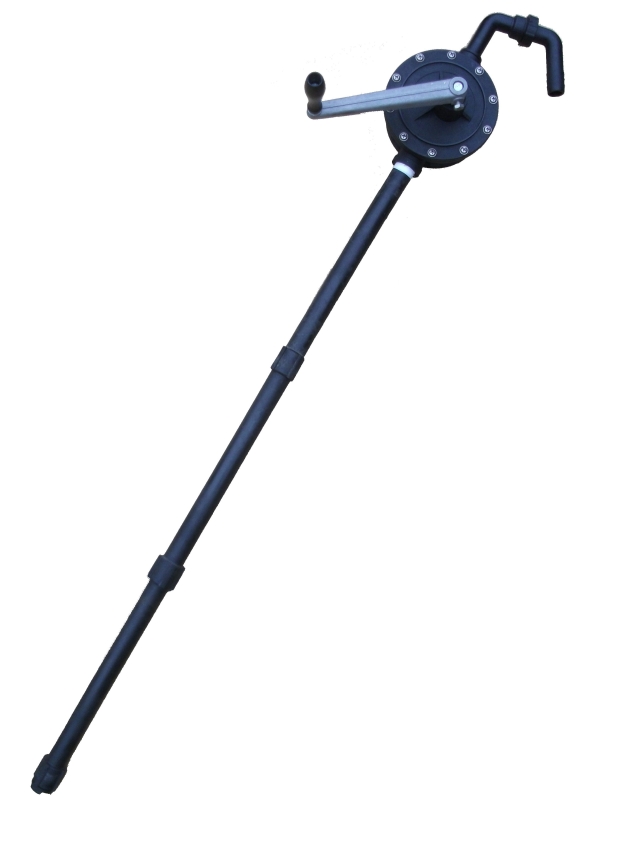

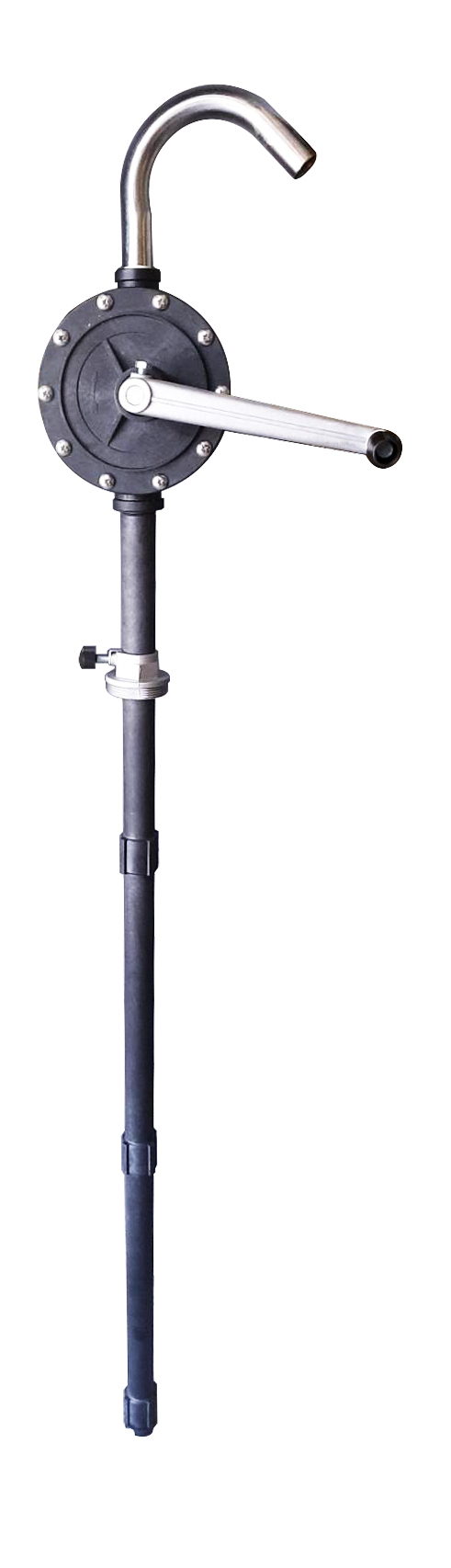

DRUM PUMP

Product detail:
Specifications:
Pump Type: Rotary - Gear
Flow: 1L / Stroke
Maximum Fluid Temperature: 140˚F / 60˚C

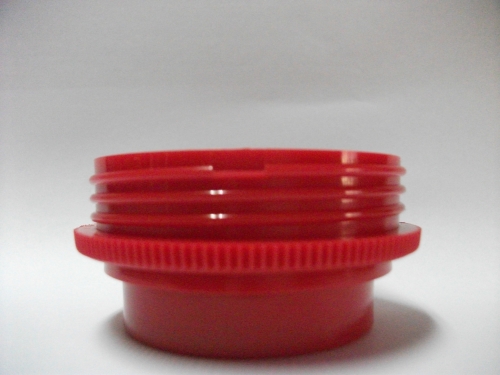

Mounting: 2" MNPT Bung Adapter
Suction Tube Length: 40" Maximum
Inlet: 1-1/4" O.D.
Outlet: 1" O.D. Curved Spout Length 130cm
Wetted Parts: Cast Aluminum, Plated Steel, NBR & PE
Maximum Viscosity: 500 SSU (or SAE 30)

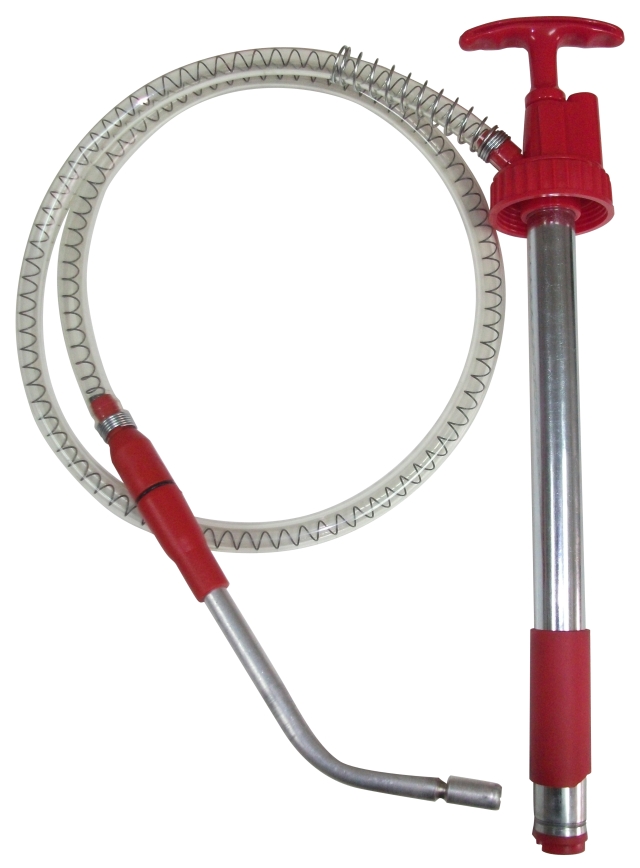

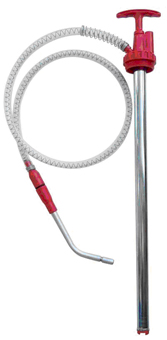

Option: Rubber Hose and Non-drip Nozzle
TP-88 Standard Packing: 5 pcs/ctn, NW: 28kgs, GW: 30kgs, CUFT: 3.4'
TP-88B Standard Packing: 4 pcs/ctn, NW: 22kgs, GW: 23kgs, CUFT: 1.6'
Features:
Commonly used for dispensing or transferring low viscosity and non-corrosive petroleum based fluids, such as Petrol, Diesel, Kerosene, Lube, Fuel, Machine Oil, etc.
Counter clockwise and clockwise operation for discharging freely.
Vertical conveying distance of 15 meters, horizontal conveying distance of 50 meters.
Supply with 2" bung adapter and 3-piece(TP-88B) or 40" long plated steel suction tube(TP-88) to fit most 55 gallon drums.
Self-priming unit, dispenses approximately 1 liter per stroke.
Do not use with organic solvents, alkalis, acids and water-based fluids.
Supply with Suction Filter to filter the dirt and ensure pump life.
