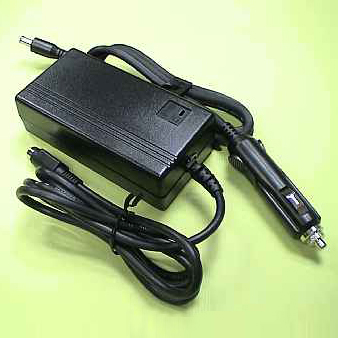

BSD-60-124 24V / 60W car adapter
- 產品型號:
- BSD-60
詳細規格及用途描述
Input
* Input voltage: 12-32Vdc
* Input Frequency: DC
* Input current: 7.0A
* Efficiency: >80% at Full Load
Output
* Output Rating: 60W
* Output Voltage: +24VDC
* Output current: 2.5A
* Line Regulation: 1%
* Load Regulation: 5%
* Ripple & Noise: 1% P-P max
Protection
* Over Voltage Protection
* Short circuit Protection
* Over current Protection
* Input over / undervoltage protection
EMI / RFI: Meets limits: CISPR 22 CLASS B
Input Plug: Cigarette plug cable
Output Plug: As required
Plastic Case
Dimension: 120 X 62 X 35mm
More specifications (pdf)
