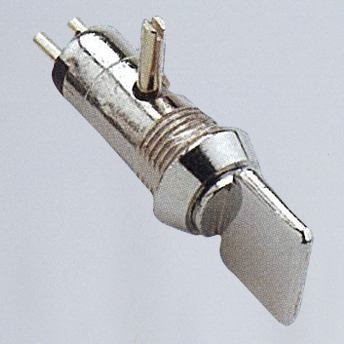

電源鎖
- 產品型號:
- S260
詳細規格及用途描述
Application:
Security Systems, Alarm, Computer, Telephone…etc.
Description:
* Zinc Alloy Die-cast housing and cylinder, chrome plated.
* Sliver Plated Contacts & Terminals.
* The Key can be drawn out at both ON and OFF position.
* Upon request the key can be drawn out at “ON” or “OFF” position only.
Specification:
* Contact Rating: 2A 125VAC, 1A 250VAC
* Contact Resistance: Max. 10 Milli-Ohms
* Insulation Resistance: Min. 500Meg-Ohms (500VDC)
* Dielectric Strength: 1000VAC-1 Minute.
* Weight: 21g / unit.
* Terminal: (S260A) 2 / (S260B) 2
* Key Way: (S260A) 90° / (S260B) 90°
* Position: (S260A) OFF / ON; (S260B) ON / OFF
