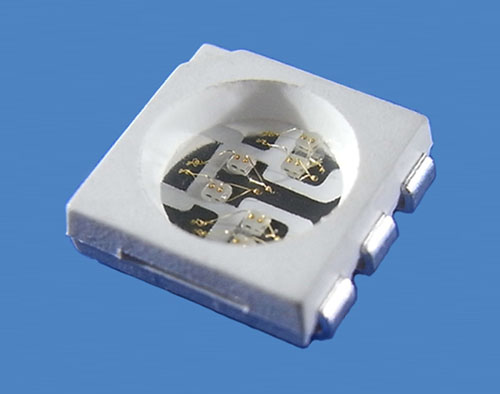

SMD LEDs
- 產品型號:
- YJ-S5050R6
- 原產地:
- 中國
- 顏色:
- Red, green, blue, yellow, white
詳細規格及用途描述
SMD LED with 120 Degrees Beam Angle and 120mA Forward Current, Measures 5.0 x 5.0 x 1.5mm
* Beam angle: 120 degrees
* Light sources: 6 chips
* Forward current: 120mA
* Various emitting colors are available
* Peak wavelength: Red: 620 to 635nm / Blue: 460 to 470nm / Green: 515 to 530nm
* Luminous intensity: Red: 1,300 to 2,000mcd / Blue: 600 to 1,000mcd / Green: 3,500 to 5,000mcd
* Pure white: 4,000 to 5,500mcd
* Forward voltage: Red: 1.8 to 2.4V / Blue: 3.0 to 3.6V / Green: 3.0 to 3.6V / White: 3.0 to 3.6V
* Dimensions: 5.0 x 5.0 x 1.5mm
