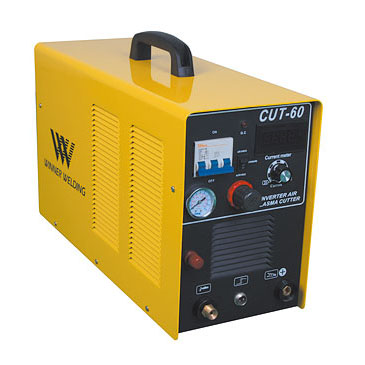

Inverter ARC Plasma Cutting Machine

Function and feature
* High frequency inverter, high duty cycle, low energy consumption.
* Compact, light weight and easy to carry, suitable for outdoor movable

operation.
* High cutting speed, norrow cutting gap, smooth cutting surface, less

distortion.
* Digital electric current disply adjustable and exact cutting current.
* Protective electric circuit built-in to prevent over heat, over

current, over voltage or under voltage etc.

Features:
* High cutting power, up to 20mm
* With ARC maintenance device, applicable to automatic cutting equipment
* Touch and ARC initiation
* Stable ARC, long working time

Main technical parameters:
* Input Voltage/Frequency: 380V±10% 3Ph 50/60HZ
* Rate input power capacity (KVA): 6
* Output current range (A): 20~60
* Rate output voltage (V): 98
* O.C.V (V): 245
* Duty cycle (%:) 60
* Efficency (%): 85
* Weight (kg): 16
* Overall dimension (mm): 540x205x357
* Exhaust (m/min): 6
* Pilot arc: yes
* Max.cutting thickness (mm): 20.0
