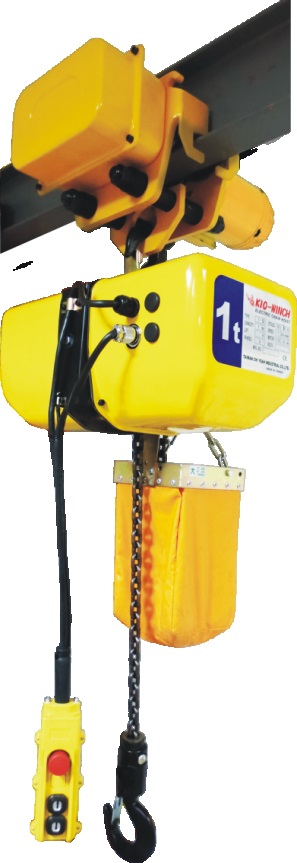

Electric Chain hoist CX-1T

Product Introduction

FEATURE:

Easy dissemble and assemble of trolley which accelerate you application speed.

The transmission gear is grinded, heat treated and pitch process to achieve silent run.

The unit and trolley are ultra slim design to rise the track to maximum height, increase the lifting distance and height.

Various type of suspension design available which can be case design for different places.

The drilling and milling processing of the unit and trolley are conducted of large lathe which ensure high precision and stability of machine.

The design of trollry and distal are triangle plate make aesthetic installation.



SPECIFICATIONS (H) In quotes means lift measure
Model Capacity (ton) Lift (M) Hoisting Speed (m/min) Hoisting Motor (kw) Traversing Speed (m/min) Traversing Motor (kw) Chain Dia. *Pitch-No. Control Falls Line Control Voltage Power Source Standord Min. Raidus Curvature(m) Approx. Weight(kg)
50hz 60hz 50hz 60hz 50hz 60hz 50hz 60hz
CX-1T 1 3(6) 7 8.4 1.8 20 24 0.17 Φ7.1×20.2 1 24V 3Φ 220/380/415/440V 50/60HZ 75-225 1.3 85
Model Approx Dimension (MM)
A B E DΦ I Beam (150×75×5.5) I Beam (200×100×7) I Beam (250×125×7.5) I Beam (300×150×11.5)
CX-1T 200 170 263 40 H 613 C 183 D 253 H 610 C 195 D 265 H 608 C 207 D 277 H C D
