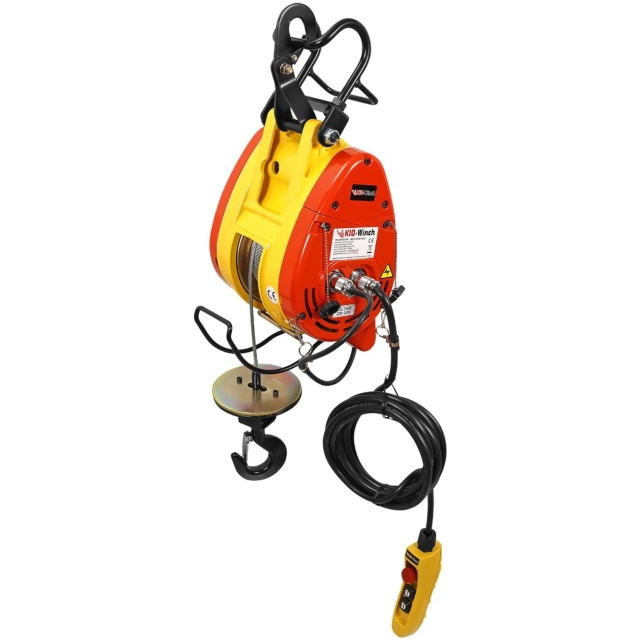

Mini Winch KIO-500

Features:

•Lightweight and compact design allows easy installation

•Automatic upper limit switch when rope disc touches the limit arm, hoisting is automatically stopped

•Dynamic and mechanical brake provides instant and safe braking

•Can operate on standard domestic power supply

•Sensor arm automatically stops motor if the wire rope is under-wound

•Wire rope comes with a 360° weight hook with safety latch


Specifications
Capacity(kg) 500
Lifting speed m/min First layer 10
Top layer 15
Motor kw × A 110V 1.8×14
220V-240V 1.8×7.5
Braking methods For motor Electromagnetic brake
For gear Mechanical brake
Maximum Lifting height m 30
Wire rope Φ mm×m 6.35×31
Net weight kg 28
Gross weight kg 35
Warning:
Winches are not to be used for the moving of persons.

Warranty:

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Wire ropes are not included under warranty.

Standard Accessories:

Wire rope 6.35mm × 31m for KIO-500

Weight hook K-11

Switch cord 2mm² × 6C × 7m

Power lead 2mm² × 3C × 7m

Pendant switch K-913

Optin Accessories:

Remote control K-913B assembly
