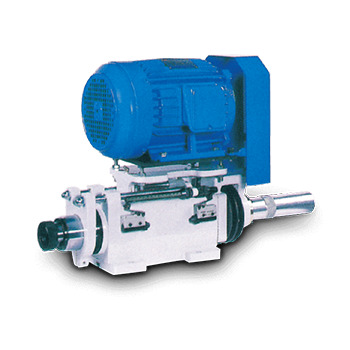

Lead-screw Guide Tapping Unit
- 產品型號:
- T-140H
詳細規格及用途描述
| Model | T-100H | T-120H | T-140H |
|---|---|---|---|
| Capacity | M10 | M20 | M35 |
| Total Stroke | 100mm | 120mm | 150mm |
| Braking Stroke | 100mm | 120mm | 150mm |
| Speed Range | 600-1000-1500 | 300-1000 (optional) | 200-800 (optional) |
| Motor | 0.75kw | 1.5kw | 2.25kw |
| Tool Holder | ER20 / JT6 | ER32 / MT3 | MT4 / NT40 |
| Weight | 50kgs | 90kgs | 105kgs |
