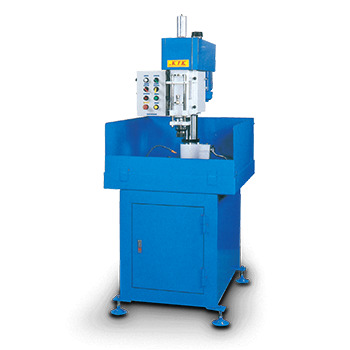

Lead-Screw Auto Tapping Machine
- 產品型號:
- T-140
詳細規格及用途描述
| Model | T-360 | T-120 | T-140 |
|---|---|---|---|
| Max. Tapping Capacity | M12 | M20 | M30 |
| Spindle Taper | MT2 | MT3 | MT4 |
| Spindle Travel | 100mm | 120mm | 150mm |
| Spindle Speed | 600.1000.1500 | 100.200.300 | |
| Number of Speed | 3 | 3 | |
| Variable Speed | - | 330-1330mm | |
| Swing | 360mm | 460mm | 520mm |
| Column Diameter | 80mm | 102mm | 115mm |
| Table Diameter | 320mm | 600x800mm | |
| Base Diameter | 330x510mm | - | |
| Spindle to Table Distance | 400mm | 350-700mm | |
| Spindle to Base Distance | 600mm | - | |
| Motor | 1HP | 2HP | 3HP |
| Overall Height | 1150mm | 2100mm | |
| Weight | 100kg | 600kg | 700kg |
