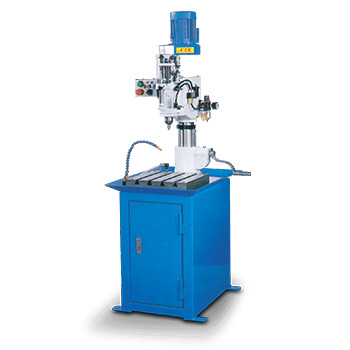

Pneumatic Drilling Machine
- 產品型號:
- P-360
詳細規格及用途描述
| Model | P-360A | P-360 | P-5100A | P-5100 | P-6150 |
|---|---|---|---|---|---|
| Max. Drilling Capacity | 6mm | 10mm | 16mm | ||
| Spindle Taper | JT2 | JT6 | MT2 | ||
| Spindle Travel | 60mm | 100mm | 150mm | ||
| Stabilizer Travel | 30mm | 60mm | 60mm | ||
| Spindle Speed | 3000.4000.5000 | 1000.2000.3000 | 1000.1500.2000 | ||
| Number of Speed | 3 | 3 | 3 | ||
| Swing | 360mm | 360mm | 460mm | ||
| Column Diameter | 80mm | 80mm | 92mm | ||
| Table Diameter | 320mm | 350x550mm | 320mm | 450x600mm | 600x800mm |
| Base Diameter | 330x510mm | - | 330x510mm | - | - |
| Spindle to Table Distance | 400mm | 100-400mm | 400mm | 100-400mm | 100-700mm |
| Spindle to Base Distance | 600mm | - | 600mm | - | - |
| Motor | 1/2HP | 1HP | 2HP | ||
| Pneumatic Power kg/cm2 | 5kg/cm2 | 5kg/cm2 | 5kg/cm2 | ||
| Overall Height | 1350mm | 1600mm | 1350mm | 1600mm | 1800mm |
| Weight | 90kg | 210kg | 100kg | 230kg | 350kg |
