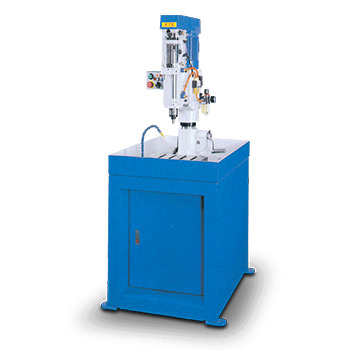

![Hydraulic Peck Feed Drilling Machine Hydraulic Peck Feed Drilling Machine](https://www.cens.com/cens/supplier/9631/product/183353/BIG.jpg?xxx=1723646542044)
Hydraulic Peck Feed Drilling Machine
- 產品型號:
- H-50-100
詳細規格及用途描述
Model | H-50-100 | H-60-150 | H-70-150 | H-90-150 |
---|---|---|---|---|
Max. Drilling Capacity | 10mm | 16mm | 25mm | 35mm |
Spindle Taper | JT6 | MT2 | ER/32MT3 | ER40/MT4 |
Spindle Travel | 100mm | 150mm | 150mm | 150mm |
Spindle Speed | 1000.2000.3000 | 1000.1500.2000 | 500.1000.1500 | 100.200.300 |
Number of Speed | 3 | 3 | 3 | 3 |
Swing | 360mm | 460mm | 460mm | 520mm |
Column Diameter | 80mm | 102mm | 102mm | 115mm |
Table Diameter | 450x600mm | 600x800mm | 600x800mm | 600x800mm |
Spindle to Table Distance | 100-400mm | 100-700mm | 350-700mm | 350-750mm |
Motor | 1HP | 2HP | 2HP | 3HP |
Hydraulic Power kg/cm2 | 20kg/cm2 | 20kg/cm2 | 20kg/cm2 | 20kg/cm2 |
Overall Height | 1600mm | 1800mm | 1600mm | 2100mm |
Weight | 260kg | 230kg | 600kg | 700kg |
