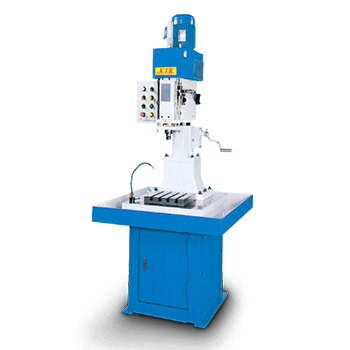

Hydraulic Drilling Machine
- 產品型號:
- H-7150
詳細規格及用途描述
Model | H-5100 | H-6150 | H-7150 | H-9150 | H-2000 | H-2500 |
---|---|---|---|---|---|---|
Max. Drilling Capacity | 10mm | 16mm | 25mm | 35mm | 20mm | 25mm |
Spindle Taper | JT6 | MT2 | MT3.NT30 | MT4.NT40 | MT3 | MT3 |
Spindle Travel | 100mm | 150mm | 150mm | 150mm | 130mm | 130mm |
Spindle Speed | 1000.2000.3000 | 1000.1500.2000 | 500.1000.1500 | 100.200.300 | 300.660.1070 (50HZ) 470.790.1280 (60HZ) | 500.1180.1350.1910 (50HZ) 600.1410.1620.2290 (60HZ) |
Number of Speed | 3 | 3 | 3 | 3 | 3 | 3 |
Swing | 360mm | 460mm | 460mm | 520mm | 460mm | 460mm |
Column Diameter | 80mm | 102mm | 102mm | 115mm | 92mm | 102mm |
Table Diameter | 400x600mm | 600x800mm | 600x800mm | 600x800mm | 600x800mm | 600x800mm |
Spindle to Table Distance | 100-400mm | 100-700mm | 350-700mm | 350-750mm | 100-700mm | 100-700mm |
Motor | 1HP | 2HP | 2HP | 3HP | 2HP | 2HP |
Hydraulic Power kg/cm2 | 20kg/cm2 | 20kg/cm2 | 20kg/cm2 | 20kg/cm2 | 220kg/cm2 | 220kg/cm2 |
Overall Height | 1600mm | 1800mm | 2100mm | 2100mm | 1900mm | 1900mm |
Weight | 260kg | 380kg | 600kg | 700kg | 300kg | 380kg |
