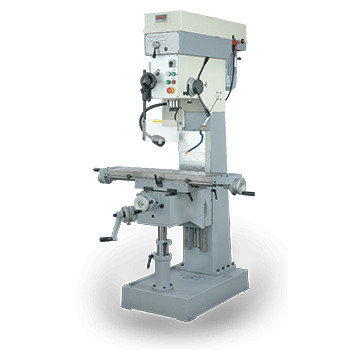

MPS-45G Drilling-Milling Machine
- 產品型號:
- MPS-45GEV
詳細規格及用途描述
| Model | MPS-45G | MPS-45GEV |
|---|---|---|
| Function | Drilling & Milling | |
| Max. Drilling Capacity | 45mm | |
| Spindle Taper | MT4 | |
| Spindle Stroke | 130mm | |
| Quill Feed | Automatic 0.06-0.1-0.2mm | Automatic |
| Spindle Speed (H) (L) | 2-Speed Gear Box 8-Speed 325-582-965-1658rpm 54-97-160-276rpm | 2-Speed Gear Box Inverter Variable Speed 430-1720 rpm 70-280 rpm |
| Column Diameter | Square | |
| Spindle to Column | 325mm | |
| Table Diameter | 260x890mm | |
| Table Travel (TC) | X-axis:440mm Y-axis:299mm Z-axis:480mm | |
| Spindle to Table | 170-650mm | |
| Base Diameter | 895x560mm | |
| Motor | 2.25kw | |
| Coolant | 0.125kw | |
| LED Light | 24V | |
| Overall Height | 2070mm | |
| Weight | 850kgs | |
