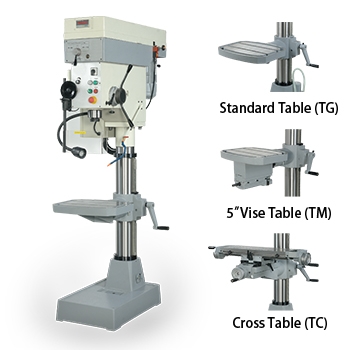

MP-45G 2-Speed Gear Drilling & Tapping Machine
- 產品型號:
- MP-45G
詳細規格及用途描述
| Model | MP-45G | MPT-45G |
|---|---|---|
| Function | Drilling | Drilling & Tapping |
| Max. Drilling Capacity | 45mm | |
| Max. Tapping Capacity | - | M26 |
| Spindle Taper | MT4 | |
| Spindle Stroke | ||
| Quill Feed | Automatic 0.06-0.1-0.2mm | Manual - |
| Spindle Speed (H) (L) | 2-Speed Gear Box 8-Speed 325-582-965-1658 rpm 54-97-160-276 rpm | 2-Speed Gear Box 8-Speed 325-582-965-1658rpm 54-97-160-276rpm |
| Column Diameter | 140mm | |
| Spindle to Column | ||
| Table Diameter (TG) (TM) (TC) | 390x505mm 390x505/5"Vise 255x630mm | |
| Table Travel (TC) | X-axis:425mm Y-axis:200mm Z-axis:440mm | |
| Spindle to Table (TG/TM) (TC) | 380-840mm 220-660mm | |
| Base Diameter | 450x720mm | |
| Motor(2-speed) | 1.5kw | |
| Coolant | 0.125kw | |
| LED Light | 24V | |
| Overall Height | 2045mm | |
| Weight | 550kgs | |
