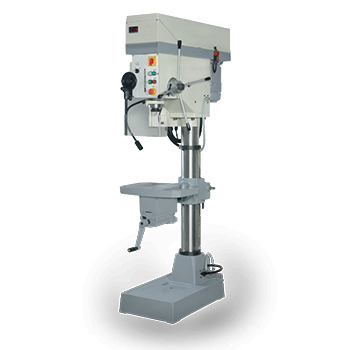

![MP-45 Drilling & Tapping Machine MP-45 Drilling & Tapping Machine](https://www.cens.com/cens/supplier/9631/product/183322/BIG.jpg?xxx=1723646556807)
MP-45 Drilling & Tapping Machine
- 產品型號:
- MPT-45
詳細規格及用途描述
Model | MP-45 | MPT-45 |
---|---|---|
Function | Drilling | Drilling & Tapping |
Max. Drilling Capacity | 45mm | |
Max. Tapping Capacity | - | M26 |
Spindle Taper | MT4 | |
Spindle Stroke | 130mm | |
Quill Feed | Automatic 0.06-0.1-0.2mm | Manual |
Spindle Speed (H) (L) | 10-Speed 270-470-730-1260-1590rpm 135-235-365-630-795rpm | |
Column Diameter | 140mm | |
Spindle to Column | 375mm | |
Table Diameter (TG) (TM) (TC) | 390x505mm 390x505/4"Vise 255x630mm | 390x505mm 390x505/5"Vise 255x630mm |
Table Travel (TC) | X-axis:425mm Y-axis:200mm Z-axis:440mm | |
Spindle to Table (TG/TM) (TC) | 380-840mm 220-660mm | |
Base Diameter | 450x720mm | |
Motor(2-speed) | 1.1/2.2kw | |
Coolant | 0.125kw | |
LED Light | 24V | |
Overall Height | 2025mm | |
Weight | 500kgs |
