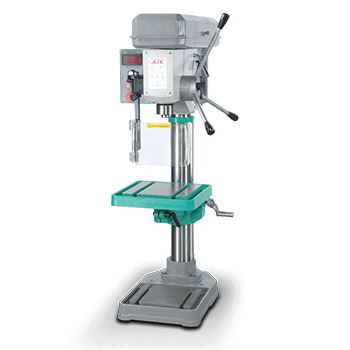

Variable Speed Drilling Machine
- 產品型號:
- TB-18V
詳細規格及用途描述
| Model | TB-16V | TB-18V | TB-120V | SB-25V |
|---|---|---|---|---|
| Max. Drilling Capacity | 16mm | Ø18 mm | Ø16 mm | Ø25 mm |
| Spindle Taper | MT2 | MT 3 | ||
| Spindle Stroke | 80mm | 90 mm | 120 mm | |
| Spindle to Column Distance | 180mm | 230 mm | ||
| Number of Speed | Variable Speed | |||
| Spindle Speed rpm | 330-3400 | 330-3400 | 260-1500 | |
| Diameter of Column | 80mm | Ø80 mm | Ø80 mm | Ø92 mm |
| Dimension of Table | 300x300mm | 350 x 350 mm | ||
| Dimension of Base | 450x310mm | 600 x 380 mm | ||
| Spindle to Table Distance | 420mm | 485 mm | 420 mm | 720 mm |
| Spindle to Base Distance | 650mm | 700 mm | 520 mm | 1250 mm |
| Motor | 0.75kw | 1.5 kw | ||
| Overall Height | 1060mm | 1080 mm | 1800 mm | |
| Weight | 70kg | 85 kg | 100 kg | 180 kg |
