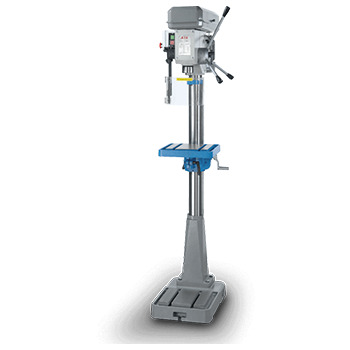

Manual Drilling Machine Square Table
- 產品型號:
- SB-18
詳細規格及用途描述
| Model | TB-16 | TB-18 | SB-18 | SB-25 | SB-32 |
|---|---|---|---|---|---|
| Max. Drilling Capacity | 16mm | 18mm | 20mm | 25mm | 30mm |
| Spindle Taper | MT2 | MT2 / MT3 | MT2 / MT3 | MT3 | MT4 |
| Spindle Stroke | 80mm | 90mm | 90mm | 120mm | 140mm |
| Spindle to Column Distance | 180mm | 230mm | |||
| Quill Feed | Manual | Automatic | Manual | ||
| Number of Speed | 9 | 12 | 4 | 9 | |
| Spindle Speed rpm | 190-2800 | 230-3100 | 480-1980 | 230-1910 | 230-1910 |
| Diameter of Column | 80mm | 92mm | 102mm | ||
| Dimension of Table | 300x300mm | 350x350mm | 400x400mm | ||
| Dimension of Base | 450x310mm | 600x380mm | 600x380mm | ||
| Spindle to Table Distance | 420mm | 485mm | 420mm | 720mm | 670mm |
| Spindle to Base Distance | 650mm | 725mm | 620mm | 1250mm | 1250mm |
| Motor | 0.75kw | 1.1kw | 0.75kw | 1.5kw | 2.0kw |
| Overall Height | 1080mm | 1060mm | 1800mm | ||
| Weight | 70kg | 85kg | 100kg | 180kg | 210kg |
