CNC 車床
- 產品型號:
- MT-208
- 原產地:
- 台灣
詳細規格及用途描述

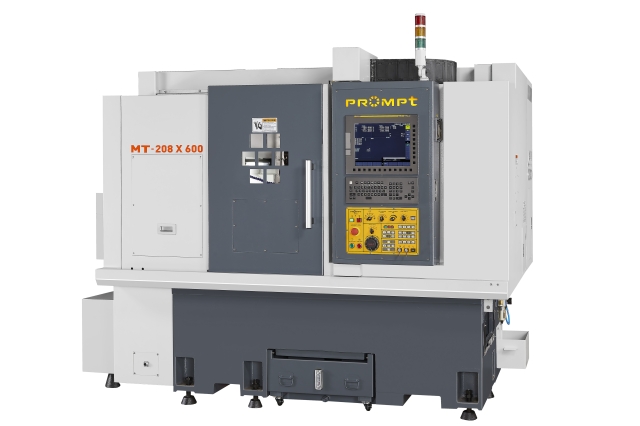

MODEL: MT-208
Machine type: Linear/Slant bed
Swing over bed: 560mm
Turning dia.: 350mm
Max. turning length: 600/750/1000mm
Bar capacity: 75 mm
Spindle nose/speed: A2-6/4800 rpm
Turret type/number: hydraulic servo/12
Chuck: size: 8"
X/Z Rapid feed: 30/30m/min
Machine Net weight: 4500/5000/5500 kg
Standard & Optional Accessories:
◆ 3-jaw hydraulic chuck ◆ Bar feeder
◆ Hydraulic system ◆ Parts catcher
◆ Hydraulic tailstock ◆ Tool setter
◆ Live center ◆ C & Y-axis
◆ Coolant system ◆ VDI/BMT turret
◆ Morse taper sleeve ◆ Tools & Holders
◆ Auto lubrication system ◆ Auto door
◆ Working light ◆ Chip conveyor
◆ Heat exchanger cabinet ◆ Chip bucket
◆ Soft jaw ◆ Transformer
◆ Foot switch for chuck ◆ CE mark
◆ MPG handwheel ◆ Safety torque limit clutch
◆ Manuals ◆ Hoisting hook package
◆ Tools and box ◆ Levelling kit
◆ Leveling bolts and screws ◆ Bar feeder interface
◆ FANUC & SIEMENS controller
