![234-04125 / MC-828607 234-04125 / MC-828607](https://www.cens.com/cens/supplier/5521/product/173783/BIG.jpg?xxx=1723621213687)

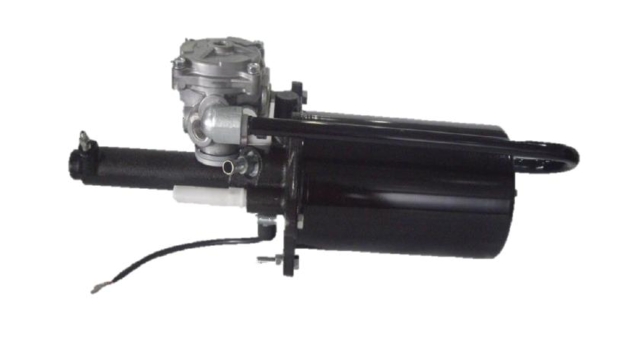

234-04125 / MC-828607
- 產品型號:
- 234-04125 / MC-828607
- 原產地:
- 台灣
詳細規格及用途描述
OEM: 234-04125 / MC-828607
NEW ITEM: 44640-3571/70(SHORT) 44640-3591(LONG)
OTHER AVAILABLE AIR MASTER ASSY SIZES:
PART # | OIL DELIVERY THREAD SIZE | CYL DIA. | INTAKE NOZZLE | IRON BUCKET LENGTH | AIR DUCT | CONTROL INLET | AIR INLET |
234-04125 MC-828607 | M12-1.5 | 26.7m/m | RH | LONG | RH | ||
234-04163 MC-894116 | M12-1.5 | 26.7m/m | RH | LONG | RH | 90∘ | 45∘ |
234-04167 MC-894120 | M12-1.5 | 26.7m/m | RH | LONG | RH | 90∘ | 180∘ |
234-04228 MK-321046 | M12-1.5 | 26.7m/m | RH | LONG | RH | NONE | NONE |
234-04263 | M14-1.5 | 26.7m/m | RH | LONG | RH | NONE | NONE |
234-04179 1-47800-428-0 | M14-1.5 | 29.1m/m | RH | LONG | LH | 90∘ | 45∘ |
234-04264 | M14-1.5 | 29.1m/m | RH | LONG | RH | NONE | NONE |
47250-Z2066 | M16-1.5 | 29.1m/m | RH | LONG | RH | 90∘ | 45∘ |
234-04021 47250-Z2010 | M18-1.5 | 29.1m/m | RH | LONG | RH | 90∘ | 45∘ |
234-04516 MC-809625 | M12-1.0 | 26.7m/m | LH | SHORT | RH | 90∘ | 45∘ |
234-04742 MC-894135 | M12-1.0 | 26.7m/m | LH | SHORT | RH | 90∘ | 180∘ |
234-04817 MK-321045 | M12-1.0 | 26.7m/m | LH | SHORT | RH | NONE | NONE |
234-04848 | M12-1.0 | 26.7m/m | LH | SHORT | RH | NONE | NONE |
234-04643 MC-815395 | M12-1.5 | 26.7m/m | LH | SHORT | RH | 90∘ | 45∘ |
234-04849 | M12-1.0 | 29.1m/m | LH | SHORT | RH | NONE | NONE |
234-04787 47250-Z2067 | M16-1.5 | 29.1m/m | LH | SHORT | RH | 90∘ | 45∘ |
234-04680 MC-828605 | M12-1.5 | 26.7m/m | RH | SHORT | RH | 90∘ | 180∘ |
234-04735 MC-894127 | M12-1.5 | 26.7m/m | RH | SHORT | RH | 90∘ | 45∘ |
234-04782 47250-00Z01 | M16-1.5 | 29.1m/m | RH | SHORT | RH | 90∘ | 180∘ |
1-47800-757-0 | M12-1.5 | 29.1m/m | RH | SHORT | LH | 90∘ | 45∘ |
234-06039 MC-828264 | M12-1.0 | 23.81m/m | UP THE HYD-CLY | LONG | NONE | NONE | NONE |
234-06602 MC-828265 | M12-1.0 | 23.81m/m | MIDDLE | SHORT | NONE | NONE | NONE |
44610-E0120 | M12-1.0 | 43.5m/m | UP THE HYD-CLY | LONG | NONE | NONE | NONE |
44610-E0110 | M12-1.0 | 43.5m/m | UP THE HYD-CYL | SHORT | NONE | NONE | NONE |
