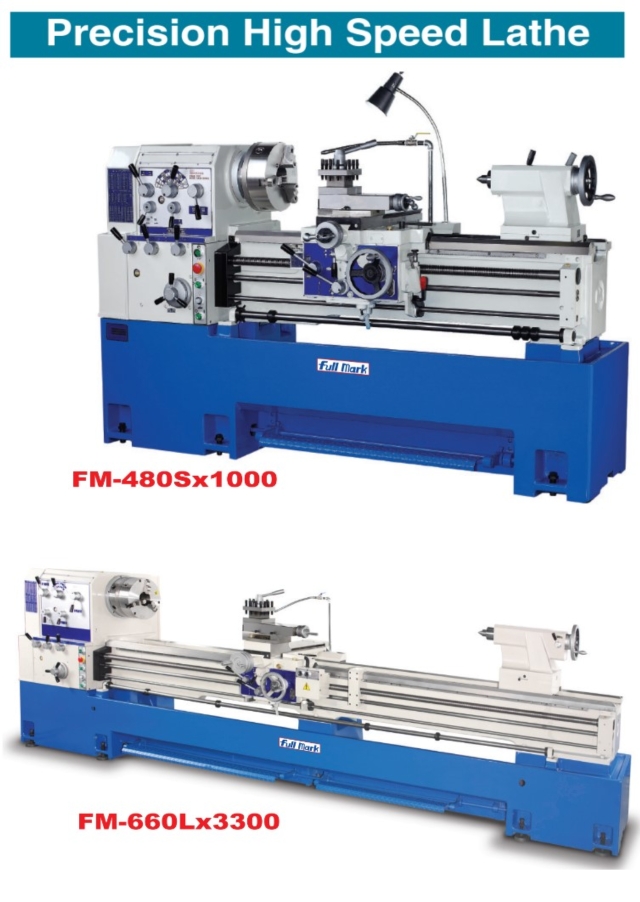

Precision High Speed/Heavy Duty Lathe
- 產品型號:
- FM-430S~FM-760L
- 原產地:
- 台灣
詳細規格及用途描述
FEATURES :
◆ Selective Bed Width :
S series : 300 mm ; M series : 350 mm ; L series : 400 mm
◆ Spindle Bore Diameters :
S series : Ø 58 mm [Option : Ø 80 mm ]
M series : Ø 85 mm
L series : Ø 85 mm [Option : Ø 120 mm ]
◆ FAG , SKF precision bearings or equivalent quality bearing installed on spindle , maximum cutting depth can be 8mm on 50 mm diameter and best roundness 0.003mm(200mm length)
◆ Equipped with plastic rear gears , shafts and gears inside headstock are well protected if ctash should occur (S series ) .
◆ Thermal treated & ground alloy gears .
◆ Universal gearbox for both imperial and metric thread-conversion table attached .
◆ Tracks of cross slide and bed are well lubricated with lubrication pump (manual).
◆ Overload device to ensure safety when operating .
◆ Wear-resistant phosphor bronze lead screw nuts .
◆ Durable reservoir oil bath on cross slide (for S series ).
◆ Thermal treated Meehanite bed casting .
◆ One-piece base for high rigidity and low vibration .
◆ High-capacity coolant tank offers sufficient coolant output .
Standard Accessories :
◆ Tool box
◆ Two centers
◆ Safety pin
◆ Screw wrench for cutter setting
◆ Back plate
◆ Coolant system
◆ 4-way tool post
◆ Auto-feed stopper ring
◆ Center sleeve
◆ Levelling pads
◆ Rapid Traverse (standard for L series centers distance : 2500,3300,4300mm)
