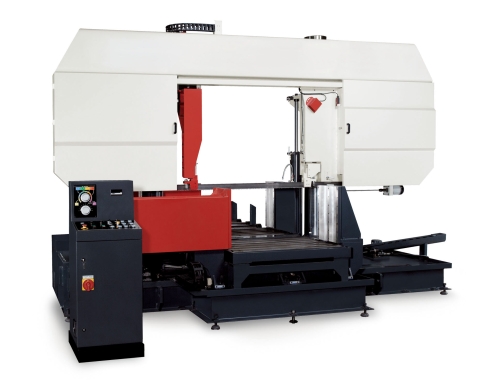

DOUBLE COLUMN BAND SAW (FULLY-AUTO.)
- 產品型號:
- RIC-BS80CFANC
- 原產地:
- 台灣
詳細規格及用途描述
CAPACITY：● 800MM ▅ 1000 x 800MM
BLADE SIZE：8800 x 67 x 1.6MM
HYDRAULIC PUMP：2.2kW (3HP)
COOLANT PUMP：0.2kW (1/4HP)
TABLE HIGHT：680MM
MATERIAL LENGTH OF SINGLE FEED：410MM
BLADE SPEED：20~80M/MIN.
BLADE DRIVE：11kW (15HP)
HYDRAULIC TANK：100L
COOLANT TANK：140L
STANDARD ACCESSORIES：
* M42 Bi-METAL SAW BLADE
* VARIABLE SPEED CONTROLLED BY INVERTER
* HYDRAULIC TENSION DEVICE OF SAW BLADE
* CHECK DEVICE OF SAW BLADE BREAKING
* POWER DRIVEN WIRE BRUSH
* HYDRAULIC CARBIDE BLADE GUIDE SYSTEM
* P.L.C. CONTROL FOR ALL ELECTRIC & HYDRAULIC FUNCTION
* AUTO. WORK HEIGHT CONTROL & FAST APPROACH
* SHUTTLE TYPE AUTO.FEED
* CE STANDARD
* NC CNONTROL SYSTEM
* AUTO. CHIP CONVEYOR
* COOLANT SYSTEM
* HYDRAULIC VISE
* SPLIT FRONT VISE
* WORK LAMP
* WATER GUN
* TOOL BOX & TOOLS
