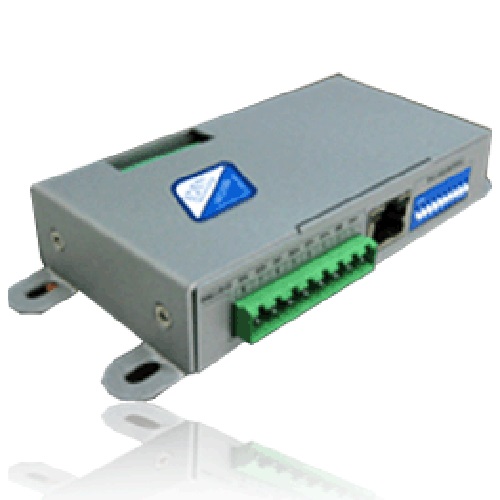

DALI Remote Digital Output
- 產品型號:
- RDO-1004
詳細規格及用途描述
- Associate with traddtional lighting systems.
- Join to a device with dry contact
- Enhance more lighting functions with DALI control interface.
Specifications
LED Indicate：Power On Status / Green Led DALI Bus Transmission / Red LED
DALI Transmission Baud Rate：1200 BPS
Power Consumption：30mA
Power Supply：DC-input 15V
Protocol & Interface
Protocol：DALI (IEC-62386)
Communication Bus：DALI
Connectivity：Terminal Block (6 Pole) DALI BUS x4 Power In x2
DALI Address Mapping：Adjustable DIP Switch (10bit)/Per Channel
Digital Output
Channel：4
Digital Output Type：5V
Digital Output Current：＜0.8A
Operating Temperature：0c ~ 65c
Digital Output Connectivity：Pluggable terminal blocks 8 pole Pitch 5.0
Compliance：CE, FCC
Accessories：Quick Installation Guide
