Worm Drive Hose Clamp
- 原產地:
- 台灣
詳細規格及用途描述

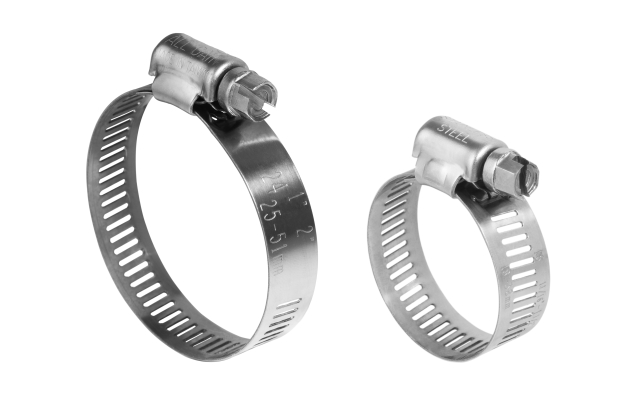

Worm Drive Hose Clamps
American standard worm drive hose clamps are the most common and widely used type of hose clamp in the clamp series. They are mainly suitable for common household and automotive applications. The key features of American standard hose clamps are the clean and tidy perforations on the straps, sturdy and lightweight materials, and easy installation.
All Gain products encompass the entire process from research and development, mold creation, and production, to packaging, providing a one-stop service. If you have any custom requirements, please feel free to contact us.
Detail Specifications
The materials for the housing, band, and screw of the hose clamp can be customized according to your needs. Please indicate your requirements in your email, and our sales representative will be happy to assist you.
Worm Drive Hose Clamps | ||||||||
Diameter Range | Packing / CTN | |||||||
No. | Inch | mm | Galvanized | AISI | AISI | pcs | G.W. | cu.ft. |
Min. | Min. | |||||||
Mini clamp with 8mm wide band | ||||||||
8A-4 | 1/4” - 5/8" | 6-16 | 0.6 | 0.6 | 0.5 | 2000 | 14.7 | 0.85 |
8A-6 | 5/16" - 7/8" | 8-22 | 0.6 | 0.6 | 0.5 | 2000 | 14.7 | 0.85 |
8A-8 | 7/16" - 1 | 11-25 | 0.6 | 0.6 | 0.5 | 2000 | 14.7 | 0.85 |
8A-10 | 1/2" - 1 1/16” | 13-27 | 0.6 | 0.6 | 0.5 | 2000 | 14.7 | 0.85 |
Regular clamp with 12.7mm or 14.2mm band | ||||||||
A-8 | 7/16" - 1" | 11-25 | 0.7 | 0.65 | 0.6 | 1,000 | 19.3 | 1.3 |
A-10 | 1/2" - 1 1/16" | 13-27 | 0.7 | 0.65 | 0.6 | 1,000 | 19.5 | 1.3 |
A-12 | 1/2" - 1 1/4" | 13-32 | 0.7 | 0.65 | 0.6 | 1,000 | 20 | 1.3 |
A-16 | 1 1/16" - 1 1/2" | 18-38 | 0.7 | 0.65 | 0.6 | 1,000 | 21.1 | 1.7 |
A-20 | 3/4" - 1 3/4" | 19-44 | 0.7 | 0.65 | 0.6 | 1,000 | 23.2 | 2.1 |
A-24 | 1" - 2" | 25-51 | 0.7 | 0.65 | 0.6 | 1,000 | 24.3 | 2.3 |
A-28 | 1 1/4" - 2" 1/4" | 32-57 | 0.7 | 0.65 | 0.6 | 1,000 | 27.4 | 2.8 |
A-32 | 1 1/2" - 2" 1/2" | 38-64 | 0.7 | 0.65 | 0.6 | 1,000 | 29.6 | 3.2 |
A-36 | 1 3/4" - 2" 3/4" | 44-70 | 0.7 | 0.65 | 0.6 | 1,000 | 31.7 | 3.8 |
A-40 | 2" - 3" | 51-76 | 0.7 | 0.65 | 0.6 | 500 | 17.2 | 2.3 |
A-44 | 2 1/4" - 3 1/4" | 57-82 | 0.7 | 0.65 | 0.6 | 500 | 18.3 | 2.5 |
A-48 | 2 1/2" - 3 1/2" | 64-89 | 0.7 | 0.65 | 0.6 | 500 | 18.4 | 2.8 |
A-52 | 2 3/4” – 3 3/4” | 70-95 | 0.7 | 0.65 | 0.6 | 500 | 19.5 | 3.0 |
A-56 | 3" - 4" | 76-101 | 0.7 | 0.65 | 0.6 | 500 | 19.6 | 3.2 |
A-60 | 3 1/4" - 4 1/4" | 83-108 | 0.7 | 0.65 | 0.6 | 500 | 21.4 | 3.2 |
A-64 | 2 1/2" - 4 1/2" | 64-114 | 0.7 | 0.65 | 0.6 | 500 | 21.5 | 3.2 |
A-72 | 3" - 5" | 76-127 | 0.7 | 0.65 | 0.6 | 250 | 12.0 | 3.2 |
A-80 | 3 1/2" - 5 1/2" | 89-140 | 0.7 | 0.65 | 0.6 | 250 | 13.0 | 3.9 |
A-88 | 4" - 6" | 102-152 | 0.7 | 0.65 | 0.6 | 250 | 14.0 | 4.5 |
A-96 | 4 1/2” - 6 1/2" | 114-165 | 0.7 | 0.65 | 0.6 | 250 | 15.0 | 4.5 |
A-104 | 5" - 7" | 127-178 | 0.7 | 0.65 | 0.6 | 250 | 16.0 | 4.5 |
