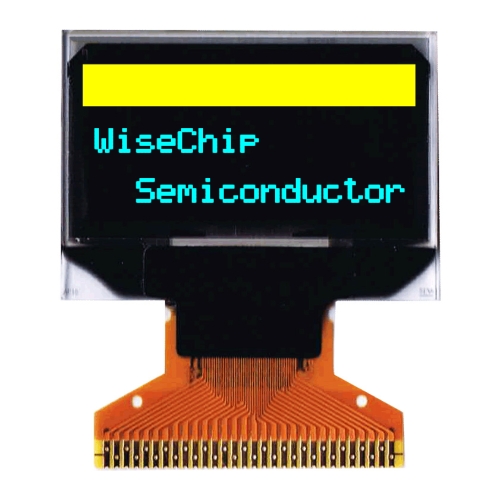

繪圖型區彩顯示器
- 產品型號:
- UG-2864HMBEG01
- 原產地:
- 台灣
- 顏色:
- Light Blue+Yellow
詳細規格及用途描述
• Diagonal Screen Size:0.96"
• Number of Pixels:128 × 64
• Color Depth:Monochrome (Light Blue+Yellow)
• Module Construction:COG
• Module Size (mm):26.70 × 31.26 × 1.45
• Panel Size (mm):26.70 × 19.26 × 1.45
• Active Area (mm):21.744 X 11.204
• Pixel Pitch (mm):0.17 × 0.17
• Pixel Size (mm):0.154 × 0.154
• Weight (g):1.54
• Duty:1/64
• Brightness ( cd/m²):90 (Typ) @ 7.25V
• Interface:Parallel, 3-/4-wire SPI, I2C
• Assembly:Soldering / Hot Bar
