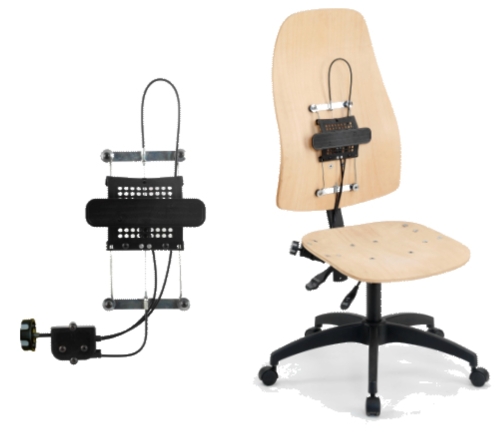

2IN1 Adjustable Lumbar Support Mechanism

2IN1 Adjustable Lumbar Support Mechanism

產品型號:
CH-SBS 2IN1

詳細規格及用途描述

(One Actuator for 4 functional adjustment)
1.Features-
Manual/ Motor:Manual
In/Out:25 mm
Up/Down:70 mm
Adjustment:2IN1
*Cable Length:1095 / 720/ 500 mm
*Variable by request depending on seat design and installation space

2.Material-
Plastic board : Special Nylon
Frame: Plastic

3.Actuator-
Nr of turns:3.1 / 3.8
Sound: No

4.Product-
L(mm): 315
W(mm):230
Thick(mm): 62
NW(kgs):0.73
