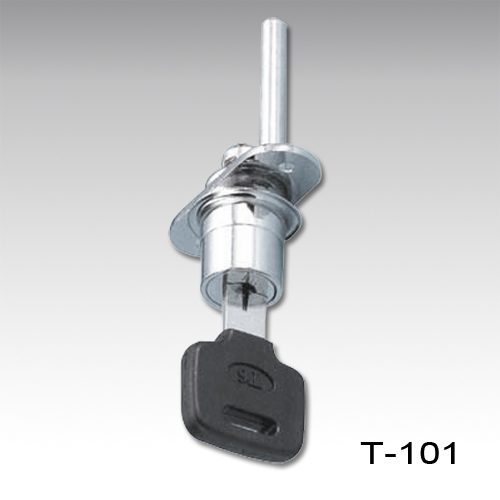

Central Lock Front-Mounted System
- 產品型號:
- T-101 / T-101-Bar
詳細規格及用途描述
[Lock Body]
Zinc alloy die casting body and cylinder.
Bright chrome plated standard.
5 disc tumbler mechanism.
Rotation angle 180 ° CW.
Front mounting direction.
Available for 150 key combinations.
Master key system to be special ordered
[Bar]
Aluminum solid lock bar.
Standard length 600mm, other length to be special ordered,
[Peg]
Zinc alloy die casting body
Standard length 10mm/17mm, other length to be special ordered.
With 3pcs M4 screw
[Bar Guide] Steel nickel plated
[Accessories]
2 double bitted keys with plastic head.
1 rosette (small size) with nickel plated.
1 bar, 3 peg, 2 bar guide
[Where Use]
Wooden & Metal multi-drawers.
