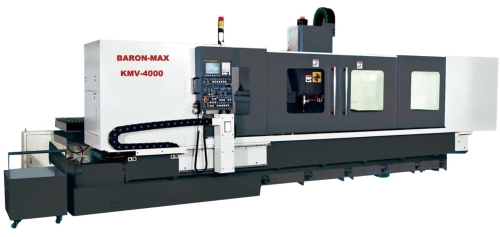

動式加工中心機
- 產品型號:
- KMV-4000
- 原產地:
- 台灣
詳細規格及用途描述
Outstanding Features:
1.Powerful 12/16kW, BT40/8000rpm spindle
2.Closed Loop AC digital Spindle drives
3.24-pocket Arm type ATC (40 tools Opt.)
4.Digital AC X-Y-Z axes Servo Motors
5.Rapid Feed: 30 m/min in X, 15m/min in Y, Z
6.24-pocket Arm type A.T.C (40 tools Opt.)
7.24V/70 W Halogen Work light
8.3 bar coolant pressure with flow rate of 20 liter/min
9.Marveling operator pendant
10.Screw type chip conveyor for swarf removal
11.Hand pendant with MPG and controls
12.Automatic Lubricated w/Low Lube Fault
13.Laser calibrated & Ball bar analysis
14.Instruction/operation manual + part’s list CDR
