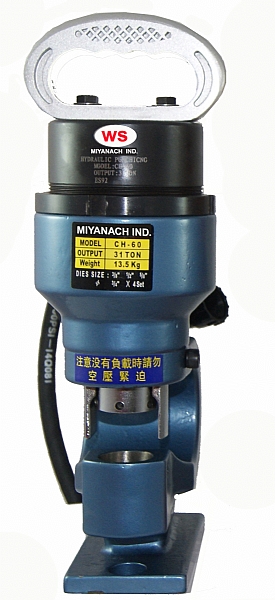

![Angle-steel hydraulic puncher Angle-steel hydraulic puncher](https://www.cens.com/cens/supplier/7181/product/9694/BIG.jpg?xxx=1723641659918)
Angle-steel hydraulic puncher
- 产品型号:
- CH-60, CH-70
详细规格及用途描述
Angle-steel hydraulic punching tools
Single hole type: copper plate, aluminum plate, angle-steel separate type of drilling machine 31ton, 35ton 10000PSI
Separate type of liquid pressure drilling machine which is available to L, H plate steel copper plate and aluminum plate for punching.
There was designed plain seat on the bottom, very steady and smooth.
Single-hole type of return oil, the dies were made with High-carbon Tungsten alloy steel, not easy to be damaged.
CH-60
WxL Oval size
1/4"(7.9x19mm), 5/16"(9.5x19mm)
3/8"(10.5x19mm), 7/16"(12.7x19mm)
1/2"(14x19mm)
CH-70
WxL Oval size
3/8" (11x19mm)
1/2" (14x21mm)
5/8" (17x24mm)
(This machine only enclosed round dies; oval dies must be order additionally)
