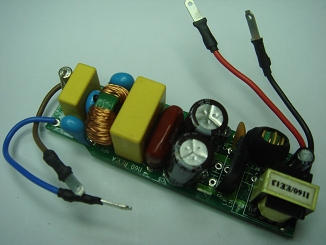

I160球灯泡发光二极体LED驱动器
- 产品型号:
- I160
- 原产地:
- 台湾
详细规格及用途描述
ELECTRICAL SPECIFICATIONS :
INPUT
Input voltage : 100-240Vac
Input frequency : 47 - 63 Hz
Input current : 0.5Arms max.
Efficiency : 83~90% typical at full load
Power factor : 90% min. at full load
OUTPUT
Output rating : as rating charts
Line regulation : 1%
Load regulation : 5%
Constant current tolerance : 5%
Ripple & noise Vp-p : 10% max.
Output power : as rating chart
ENVIRONMENT
Operating : full load -20-50℃ convection
Non-operating : -20-85℃
Shock : MIL-STD-610C 516 Part V
Vibration : 10-500 Hz. 16 mins/cycle/axis
FEATURE
Low cost
High efficiency
Non-isolated
Small size
High pfc
DIMENSION : 75x23x20mm
ITEM Model No. Output Io max. Eff.
1 I160-240 18~24V 350mA >83%
2 I160-300 24~30V 375mA >85%
3 I160-360 30~36V 360mA >87%
4 I160-450 36~45V 330mA >88%
5 I160-560 45~56V 300mA >90%
6 I160-680 57~68V 270mA >90%
Remark : Io can be set below the max.
EMC Standards
FCC part 15 Class B
CISPR 15 Class B
CE EN 55015, EN61547
