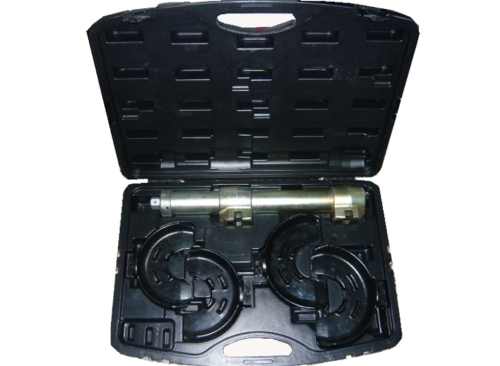

E-Z mount Coil Spring Compressor
- 产品型号:
- CSC-2600
- 原产地:
- 台湾
详细规格及用途描述
Material: Body: Special Steel
Jaw:S45C W/Powder coating
Maximum Load:2600 kg
Cylindrical springs:Ø 80-350 mm
Conical springs:Ø 80-350 mm
Compressor body:7.5kg
2 Jaws:Ø 80 ━ 170 mm
2 Jaws:Ø 120-195 mm
Bolts:Ø9x50mmL
Certificate:VPA -GS Pending
Weight:17.3kgs
Suitable for all macPherson struts.
Advantage:Patent Self-locking pin feature and mount without any tool required.
Improved load absorption onto the hardened tool body.Forged and tempered tensioning jaws W/ plastic coating to avoid damage of the springs.Packing: Box 1set/18/19/1.5’
