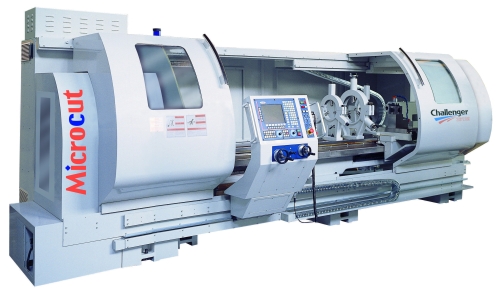

CNC Teach-In Lathe
- 产品型号:
- BNC-2600
- 原产地:
- 台湾
详细规格及用途描述
Standard accessories:
* Fagor 8055TC/A CNC Controller
* 82mm spindle bore
* 11/15Kw main spindle motor for center length 40”/60”.
* 15/22Kw main spindle motor for center length 80”/120”/160”.
* Automatic speed changer
* Chuck sliding guard with interlock device
* Gap bed
* Tailstock
* Fully enclosed front guarding with interlock system for center length 40”/60”/80”
* Traveling front single door with interlock safety device for center length 120”/160”
* Coolant system
* Lubrication system
* Low voltage circuit system
* CE Norms
* Leveling pads
* Operation manual & parts list (in English)
* Tool set & kits
Option accessories:
l Enlarged 106mm/153mm spindle bore
l Cam lock D1-8 spindle bore for 82mm/106mm spindle
l 2400rpm spindle speed
l 15/22Kw spindle bore
l TB-160 V8/VDI40 turret, brand Baruffaldi
l LS-160 8 station hyd. turret
l Electric 4 way tool post
l Boring bar base/holder
l TBMA-160 V8/VDI40 power turret, brand Baruffaldi
l C axis
l Rear chuck mounting preparation
l Rear chuck guard
l Manual 3-jaw chuck
l Hyd. 3-jaw chuck
l Automatic bar feeder
l Roller steady rest 20-200mm
l Roller steady rest 180-410mm
l Hydraulic steady rest preparation
l Follow rest 20-200mm
l Enlarged 100mm tailstock quill
l Hyd. tailstock quill
l Tailstock end cover with limit switch
l Full enclosure guarding for 120”/160” length.
l Chip conveyor + wash down system
l Air conditioner for electric cabinet
l Heat exchanger for electric cabinet
l EMC
l Protable MPG
l Transformer for other than 220V
l Tool holders
l Fanuc 0iTC with 8.4” LCD display and manual guide 0i
l Fanuc 0iTC with 10.4” LCD display and manual guide i
