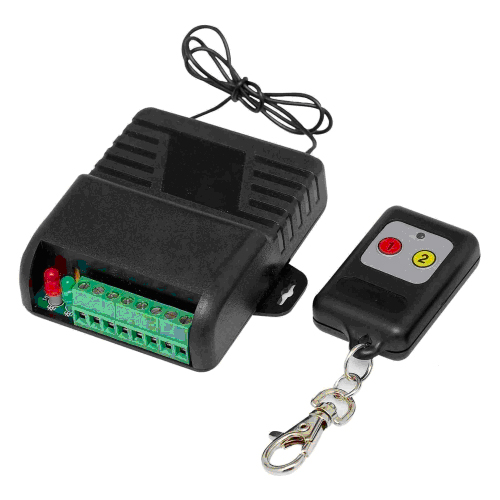

车库门遥控产品 - 遥控器（车库、汽车防盗）,车库用遥控器,遥控锁
- 产品型号:
- SRC019E
- 原产地:
- 台湾
详细规格及用途描述
双频道发射器:
频率: 315MHz / 433.92MHz (Option)
编码型式: 固定码
两个乾接点 (NO/NC/common) outputs
操作频率: 315MHz / 433.92MHz (Option)
操作电压: 11VDC to 24VDC (Option)
操作距离: up to 650 feet (open air)
操作温度: -20 to 72 degrees Celsius (-4 to 162 degrees Fahrenheit)
电流消耗: 8mA at 12VDC (standby), 45mA per channel at 12VDC (activated)
敏感度: -87dBm (typical)
资料格式: PWM
RF 编码: 18 quintillion (SK-917T2A), 68 billion (SK-919TD2A)
RF 频道: 2
可储存编码数量: 15 per channel, 30 per receiver
接收器输出: two form C dry relay contacts (NO/NC/common); 10A at 24VDC
接收器输出模式: programmable 4-second momentary (default), 1-second momentary, toggle or latch
