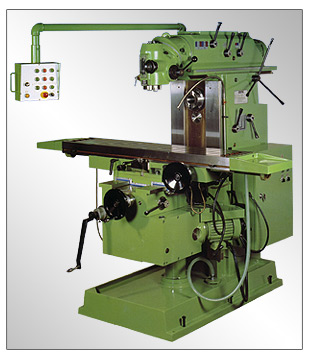

铣床
- 产品型号:
- 2500M
详细规格及用途描述
The X.Y.Z. axis are variable speed with inverter through by strong gear-box system.
So that the machines are efficiency working, reliability and convenient operation.
Rapid traverse on “X”, “Y ”& “Z” axis.
Variable speed on “X”, “Y ”& “Z” axis.
High quality meehanite casting body GC-45/DIN-40.
All gears & shafts are hardened.
Table swivels ± 45∘degrees left & right.
All “X”, “Y ”& “Z wider square slide ways & table surface are harden & ground.
Motorized ARM/RAM elec. Motor is 3.75KW(5.5HP)
Horizontal spindle elec. Motor is 5.5KW(7.5HP)
All square slide way & dovetail way are bigger & stronger.
Cast iron is either ASTM No. 40/meehanite GC-45 or DIN GG-40.
