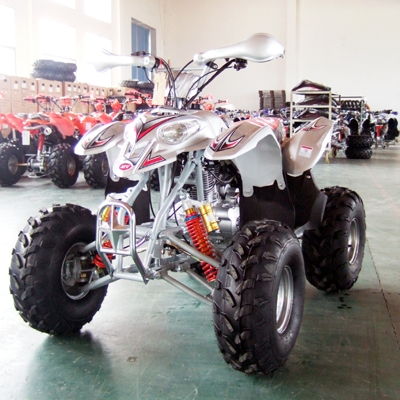

ATV
- 产品型号:
- TTA250D
详细规格及用途描述
1) Engine type : single cylinder, water cooled, 4-stroke
2) Max. speed : 95km / h
3) Transmission system : chain drive, reverse
4) Piston displacement (ml) : 200cc
5) Starting system : electric start
6) Seat height : 720mm
7) Ground clearance : 110mm
8) Brake (front / rear) : drum / disk
9) Front tire : AT 19 x 7-8 / 2. 9psi
10) Rear tire : AT 18 x 9. 5-8 / 2. 9psi
11) Ignition type : CDI
12) Fuel tank capacity : 4. 5L
13) Fuel no. : RQ 90
14) Lubrication type : pressure, splash
15) Idling/turning speed : 1, 500rpm
16) Front suspension : double arm-swing
17) Climbing capability : 30 degrees
18) Engine oil capacity : 0. 9L
19) Parking brake : mechanical lock
20) Battery : 12V, 9Ah
21) Gear oil capacity : 0. 11L
22) Rider capacity : 1 person
23) Rear track : 760mm
24) Front track : 810mm
25) Compression ratio : 10. 16 : 1
26) Cylinder arrangement : single cylinder
27) Axle base : 1, 110mm
