Audio Connectors for Microphone

Audio Connectors for Microphone

产品型号:

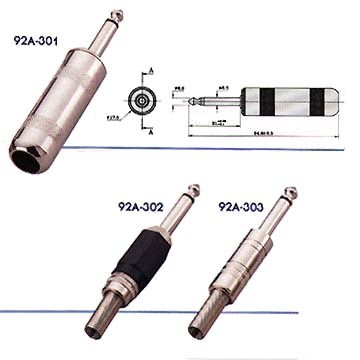

92A-301/302/303

详细规格及用途描述

Key Specifications/Special Features:
Contact resistance: 50 Mohm max. per pole
Current rating: 3-pole15A, 5&6-pole7. 5A, 7-pole5A at 125VAC
Insulation resistance: 1000 Mohm min.
Electronic withstanding voltage: 1000 V(RMS)
Insertion forces: 7 lb. max. , 5 lb. nominal
Withdrawal forces: 7 lb. max. , 5 lb. nominal
Insert insulation: high-impact, molded thermoplastic
Insert screw: stainless steel
Insert insulation: high strength, reinforced thermoset plastic
Pin contact: 3-5 (min. ) microinch gold (over 3-5 microinch nickel) plated
Primary Competitive Advantages:

International Approvals
Experienced Technical Staff
Brand-name Parts
Product Performance
Delivery Details:

Lead Time: 2-3 weeks
