![24 Ports UTP Cat.5e Patch Panel / 24 Ports UTP Cat.6 Patch Panel 24 Ports UTP Cat.5e Patch Panel / 24 Ports UTP Cat.6 Patch Panel](https://www.cens.com/cens/supplier/9361/product/27517/BIG.jpg?xxx=1723645867086)

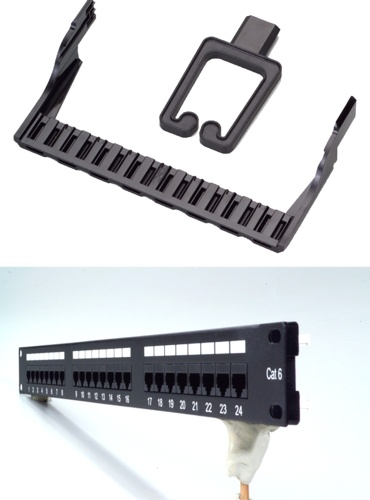

24 Ports UTP Cat.5e Patch Panel / 24 Ports UTP Cat.6 Patch Panel
- 产品型号:
- PL-1248E-C5EABL / PL-1248E-C6ABL
详细规格及用途描述
SPECIFICATIONS
1.Wiring : T568A or T568B
2.Inserting Loss : 750 cycles min
3.Housing : High impact UL94V-0 rated thermoplastic
4.IDC Blocks : Tin lead plated connector accepts 22 ━ 26 AWG solid UTP cable
5.Contact Pressure : 100gms min
6.insulation Resistance : 500megaohms min
7.Contact Resistance : 100milliohms max
8.Voltage / Current : 140VDC@1.5amps max
9.Dielectric Withstand : 1000VAC RMS@60Hz min
10. Comply with Part 68 , FCC rules
11.Comply with TIA / EIA Category 6 specifications
DESCRIPTION :
RJ45 jack with your choice of Krone Style IDC , Dual style IDC(designed to use a standard 110
punch down tool or a Krone tool for termination) or 110AT&T style IDC., Cat.5e accepts 24 -26
AWG solid wires. Cat.6 accepts 23 AWG solid wires Designed and tested to meet ANSI / TINEIA
Enhanced Category 5 (Cat.5e) / ISO / IEC 11801 Class D+ and Category 6 (Cat.6) / ISO / IEC
11801 Class E Gigabit data transmission requirements. Unshielded , Half-shielded versions are
available.
