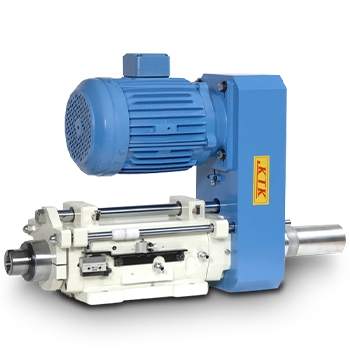

Hydraulic Peck Feed Drilling Unit
- 产品型号:
- H-90-150H
详细规格及用途描述
| Model | H-50-100 | H-60-150 | H-70-150 | H-90-150 |
|---|---|---|---|---|
| Capacity | 10mm | 16mm | 25mm | 10mm |
| Total Stroke | 100mm | 150mm | 150mm | 100mm |
| Braking Stroke | 100mm | 150mm | 150mm | 100mm |
| Speed Range | 1000-2000-3000 | 830-1250-1670 (50Hz) 1000-1500-2000(60Hz) | 300-1500 (optional) | 830, 1670, 2500 (50Hz) 1000, 2000, 3000(60Hz) |
| Motor | 0.75kw | 2HP | 1.5kw | 1HP |
| Tool Holder | ER20 / JT6 | MT2/ER25 | MT3 / NT40 | JT6 / ER20 |
| Weight | 50kgs | 380kgs | 105kgs | 230kgs |
