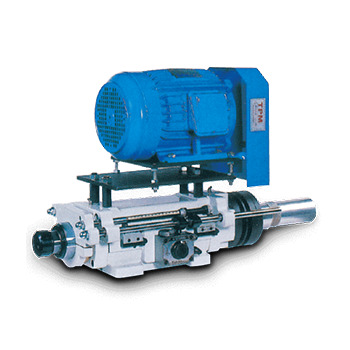

Hydraulic Drilling Unit
- 产品型号:
- H-9150H
详细规格及用途描述
| Model | H-570H | H-5100H | H-6150H | H-7130H | H-7150H | H-8130H | H-9150H | H-12150H |
|---|---|---|---|---|---|---|---|---|
| Capacity | 10mm | 10mm | 16mm | 25mm | 25mm | 30mm | 35mm | 50mm |
| Total Stroke | 70mm | 100mm | 150mm | 130mm | 150mm | 130mm | 150mm | 150mm |
| Braking Stroke | 70mm | 100mm | 150mm | 130mm | 150mm | 130mm | 150mm | 150mm |
| Speed Range | 1000-2000-3000 | 1000-2000-3000 | 1000-1500-2000 | 300-1500 (optional) | 300-1500 (optional) | 300-1500 (optional) | 300-1500 (optional) | 50-1200 (optional) |
| Motor | 0.75kw | 1.5kw | 1.5kw | 1.5kw | 2.25kw | 2.25kw | 3.75kw | |
| Tool Holder | ER20 / JT6 | ER25 / MT2 | ER25 / MT2 | ER32 / MT3 | ER40 / MT4 | MT4 / NT40 | MT4 / NT50 | |
| Weight | 38kgs | 45kgs | 62kgs | 105kgs | 105kgs | 125kgs | 125kgs | 285kgs |
