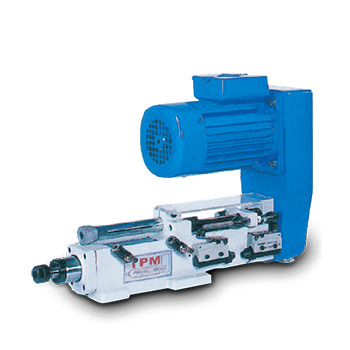

Pneumatic Drilling Unit
- 产品型号:
- P-360H
详细规格及用途描述
| Model | P-350H | P-360H | P-570H | P-5100H | P-6150H |
|---|---|---|---|---|---|
| Capacity | 5mm | 6mm | 10mm | 16mm | |
| Total Stroke | 50mm | 60mm | 70mm | 100mm | 150mm |
| Braking Stroke | 25mm | 50mm | |||
| Speed Range | 600-8000-10000 (2P) 3000-4000-5000 (4P) | 6000-8000-10000 (2P) 3000-4000-5000 (4P) | 1000-2000-3000 | 1000-1500-2000 | |
| Motor | 0.37kw | 0.75kw | 1.5kw | ||
| Tool Holder | ER16 / JT1 | ER20 / JT6 | ER25 / MT2 | ||
| Weight | 18kgs | 22kgs | 38kgs | 45kgs | 62kgs |
