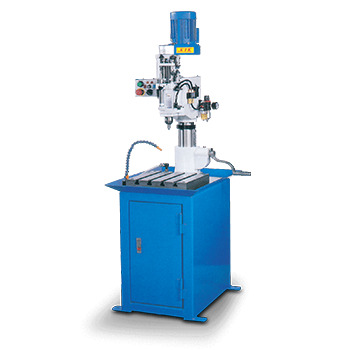

Pneumatic Peck Feed Drilling Machine

Model	P-30-60A	P-30-60	P-50-100A	P-50-100	P-60-150
Max. Drilling Capacity	6 mm	6 mm	10 mm	10 mm	16 mm
Spindle Taper	JT2	JT2 / ER16	JT6	JT6 / ER20	MT2 / ER25
Spindle Travel	60mm	60 mm	100 mm	100 mm	150 mm
Stabilizer Travel	30mm	25 mm	60 mm	50 mm	50 mm
Spindle Speed	3000, 4000, 5000	2500, 3400, 4200 (50Hz) 3000, 4000, 5000(60Hz)	1000, 2000, 3000	830, 1670, 2500 (50Hz) 1000, 2000, 3000(60Hz)	830, 1250, 1670 (50Hz) 1000, 1500, 2000(60Hz)
Number of Speed	3	3	3	3	3
Swing	360 mm	360 mm	360 mm	360 mm	460 mm
Table Size	350 x 550 mm	350 x 550 mm	330 x 510 mm	450 x 600 mm	600 x 800 mm
Column Diameter	80 mm	80 mm	80 mm	80 mm	102 mm
Distance From Spindle To Table	100-400 mm	100-400 mm	400 mm	100-400 mm	100-700 mm
Motor HP	1/2 HP	1/2 HP	1 HP	1 HP	2 HP
Pneumatic Power Kg/cm²	5 kg/cm²	5-7 Kg/cm²	5 kg/cm²	5-7 Kg/cm²	5-7 Kg/cm²
Overall Height	1600 mm	1600 mm	1350 mm	1600 mm	1800 mm
Weight	210 kg	230 kg	100 kg	230 kg	350 kg
