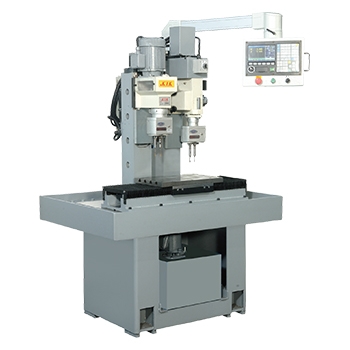

NC Gang Drilling / Tapping Machine
- 产品型号:
- NC-GDT-10/NC-GDT-16
详细规格及用途描述
| Model | NC-GDT-10 | NC-GDT-16 | ||
|---|---|---|---|---|
| Drilling | Tapping | Drilling | Tapping | |
| Max. Capacity | 16mm | M8 | 25mm | M16 |
| Spindle Taper | JT6/ER20 | JT2 | MT3/ER25 | MT3 |
| Spindle Stroke | 200mm | 45mm | 300mm | 60mm |
| Spindle Speed(rpm) | 710-1450 | 500-900 | 510-1220 | 190-340 |
| Spindle to Columin | 185mm | 185mm | 250mm | 250mm |
| Columin Diameter | 130x140mm | 130x140mm | 180x200mm | 180x200mm |
| Spindle Motor | 1HP 3-Phase | 1HP 3-Phase | 2HP 3-Phase | 2HP 3-Phase |
| Spindle Feed | 0.75kw servo motor | Pitch Gear | 1.5kw servo motor | Pitch Gear |
| Spindle to Table | 210-390mm 145-325mm | 155-435mm | 115-395mm | |
| Slide Base | 300 x 880mm | 300 x 880mm | ||
| Slide Saddle | 300 x 450mm | 300 x 450mm | ||
| Slide Stroke | 550mm | 550mm | ||
| T-Slot | M12S | M12S | ||
| Slide Table Motor | 0.75kw servo motor | 0.75kw servo motor | ||
| Loading Weight | 150kgs | 150kgs | ||
| Cooling Motor | 0.125kw | 0.125kw | ||
| Machine Dimension | 1300 x 950 x 1900mm | 1300 x 950 x 2000mm | ||
| Weight | 400kgs | 550kgs | ||
