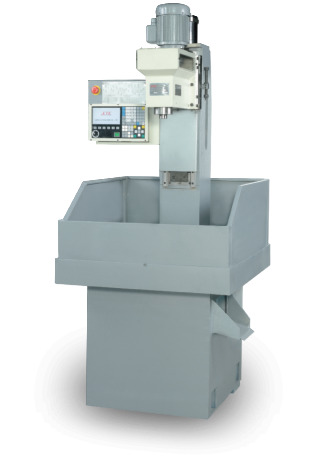

NC Drilling Machine
- 产品型号:
- NCL-25
详细规格及用途描述
| Model | NC-1600A | NC-1600 | NCL-16 | NCL-25 |
|---|---|---|---|---|
| Max. Drilling Capacity | 13mm | 20mm | ||
| Spindle Taper | MT2 | MT3 | ||
| Spindle Vertical Stroke | 120mm | 300mm | ||
| Spindle Speed | 4-speed 550-880-1340-1910 rpm | 3-speed 710-1450-2860 rpm | 3-speed 510-1220.2000 rpm | |
| Spindle Speed (H) (L) | 8-speed 550-880-1340-1910 rpm 225-440-670-955 rpm | 8-speed 550-880-1340-1910 rpm 275-440-670-955 rpm | 6-speed 710-1450-2860 rpm 355-725-1430 rpm | 6-speed 510-1220.2000 rpm 255-610-1000 rpm |
| Spindle to Column | 180mm | 180mm | 250mm | |
| Column Diameter | 80mm | 130x140x800mm | 180x200x950mm | |
| Metal Working Table | 320mm/300x300mm | 630x800x750mm | 600x800x750mm | 840x980x750mm |
| Cooling Equipment | - | 0.125kw | ||
| Spindle to Table Distance | 200-570mm | 200-550mm | 320-520mm | 250-550mm |
| Motor Poewr | 0,75kw | 1.5kw | ||
| (Option) 2-Speed | 0.375 / 0.75kw | 0.75 / 1.5kw | ||
| Overall Height | 1150mm | 1850mm | 1750mm | 1950mm |
| Weight | 120kgs | 230kgs | 220kgs | 350kgs |
