MP-40EV Inverter Variable Speed Drilling & Tapping Machine
- 产品型号:
- MP-40EV
详细规格及用途描述
| Model | MP-40EV | MPA-40EV | MPT-40EV |
|---|---|---|---|
| Function | Drilling | Drilling & Tapping | |
| Max. Drilling Capacity | 40mm | 40mm | 40mm |
| Max. Tapping Capacity | - | - | M24 |
| Spindle Taper | MT4 | ||
| Spindle Stroke | 130mm | ||
| Quill Feed | Manual 0.06-0.1-0.1mm | Automatic 0.06-0.1-0.1mm | Manual 0.06-0.1-0.1mm |
| Spindle Speed (H) (L) | 270-470-730-1260-1590 rpm 136-235-366-795rpm | ||
| Column Diameter | 120mm | ||
| Spindle to Column | 300mm | ||

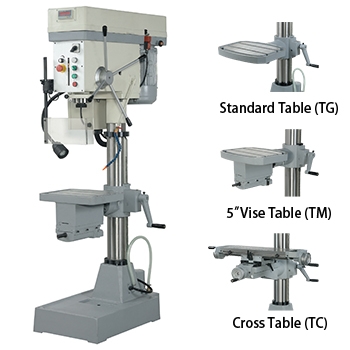

| Table Diameter (TG) (TM) (TC) | 300x400mm 330x400/5"Vise 255x630mm | ||
| Table Travel (TC) | X-axis:425mm Y-axis:200mm Z-axis:500mm | ||
| Spindle to Table (TG/TM) (TC) | 280-785mm 140-640mm | ||
| Base Diameter | 450x670mm | ||
| Motor(2-speed) | 1.1/2.2kw | ||
| Coolant | 0.125kw | ||
| LED Light | 24V | ||
| Overall Height | 1880mm | ||
| Weight | 380kgs | ||
