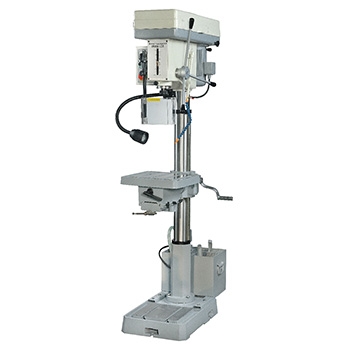

LM-20 Drilling & Tapping Machine
- 产品型号:
- LM-25
详细规格及用途描述
| Model | LM-20 | LM-25 | LM-30 |
|---|---|---|---|
| Max. Drilling Capacity | 20mm | 25mm | 30mm |
| Max. Tapping Capacity | M12 | M16 | M18 |
| Spindle Taper | MT2 | MT3 | MT4 |
| Spindle Stroke | 90mm | 120mm | 140mm |
| Spindle Speed (H) (L) | 233-3100 rpm 117-1550 rpm | 233-1910 rpm 115-955 rpm | |
| Column Diameter | 80mm | 92mm | 102mm |
| Spindle to Column | 180mm | 230mm | |
| Table Diameter (TS) (TV) | 300x300mm 300x300/4"vise | 350x350mm 350x350/5"vise | 400x400mm 400x400/5"vise |
| Spindle to Table | 175-710mm | 240-730mm | 180-650mm |
| Base Diameter | 320x520mm | 380x570mm | |
| Motor Power | 0.375/0.75kw | 0.56/1.1kw | 0.75/1.5kw |
| Coolant | 0.125kw | ||
| LED Light | 24V | ||
| Overall Height | 1710mm | 1815mm | 1830mm |
| Weight | 120kgs | 200kgs | 230kgs |
