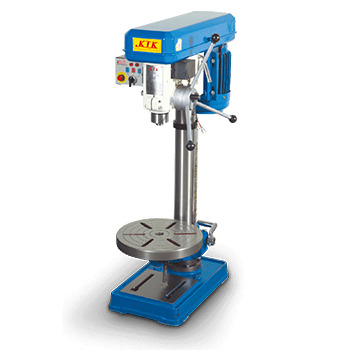

Manual Drilling / Tapping Machine
- 产品型号:
- LGT-340A
详细规格及用途描述
| Model | LGT-340B | LGT-340A | LGT-550B | LGT-550A | TB-340 | SB-550 |
|---|---|---|---|---|---|---|
| Max. Drilling Capacity | 13mm | 16mm | 20mm | 25mm | Ø25 mm | Ø25 mm |
| Max. Tapping Capacity | M10 | M12 | M18 | M20 | M 12 | M 20 |
| Spindle Taper | JT6 | MT2 | MT3 | MT3 | MT2 | MT 3 |
| Spindle Travel | 80mm | 100mm | 120mm | 140mm | 80 mm | 120 mm |
| Spindle Speed | 520-2230 | 240-2840 | 230-1910 | 230-1910 | 180 mm | 230 mm |
| Number of Speed | 4 | 9 | 9 | 9 | 9 | 9 |
| Swing | 360mm | 360mm | 460mm | 460mm | 190-2800 | 230-1910 |
| Column Diameter | 80mm | 80mm | 92mm | 102mm | Ø80 mm | Ø92 mm |
| Table Diameter | 360mm | 360mm | 400mm | 420mm | 300 x 300 mm | 350 x 350 mm |
| Base Diameter | 300x500mm | 300x500mm | 335x580mm | 380x600mm | 450 x 310 mm | 600 x 380 mm |
| Spindle to Table Distance | 450mm | 450mm | 720mm | 630mm | 420 mm | 700 mm |
| Spindle to Base Distance | 620mm | 620mm | 920mm | 930mm | 650 mm | 1250 mm |
| Motor | 1/2HP | 1HP | 2HP | 2HP | 0.75 kw | 1.5 kw |
| Overall Height | 1070mm | 1070mm | 1500mm | 1540mm | 1080 mm | 1800 mm |
| Weight | 75kg | 90kg | 140kg | 190kg | 80 kg | 180 kg |
